SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet

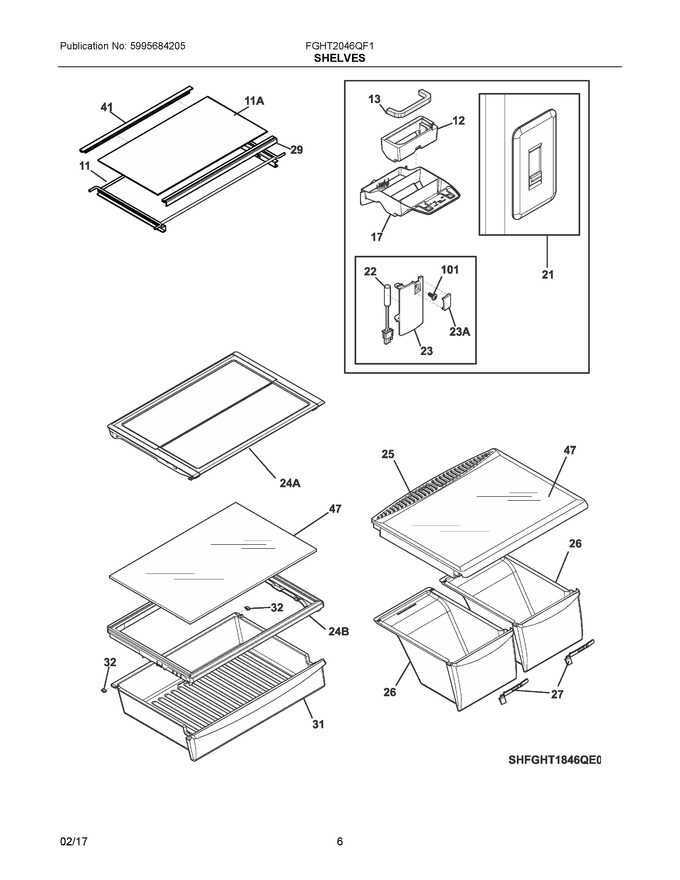

04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	242087801		Frame-shelf, Full Width		Appelez-nous	-
12	242248501		Diffuser, Air, Light Box		Appelez-nous	-
13	240568608		Gasket, Air Diffuser		Appelez-nous	-
17	5304498968		Housing, Air & Water				$ 65.63
21	242249002		Control Assembly, Temperature, W/user Interfce			Immediately	$ 211.91
22	240597220		Sensor, Temperature, 10k, Ntc   (Replaces: 240597203)			Immediately	$ 5.16
23	241842301		Cap-thermistor			Immediately	$ 34.02
25	242201803		Cover-crisper Pan				$ 123.17
26	242218506		Pan, Crisper, (2), W/humid Cntl				$ 119.78
27	242215901		Slide, Humidity Contrl				$ 18.95
29	242110901		Trim-shelf, Front		Appelez-nous	-
31	242322203		Meat Pan, Fw Pantry, W/slide Clips				$ 258.92
32	240349801		Clip-slide, Pan				$ 20.48
41	242111001		Trim-shelf, Rear				$ 19.24
47	240350609		Insert-pan Cover, Glass			Immediately	$ 162.30
101	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
11A	242087901		Glass-shelf, Full Shelf		Appelez-nous	-
23A	241969001		Cap, Screw				$ 16.69
24A	808469702		Shelf Assembly, Slide Under, Glass, W/flip Up Back				$ 232.82
24B	242205404		Cover, Deli Pan, Full Width   (Replaces: 242205402)				$ 116.03
NI	807407070		Label, Energy Guide		Appelez-nous	-
NIA	5303299664		Spacer, Shelf				$ 24.10
NIBA	240362101		Clip-slide, Cover				$ 47.03
NIBB	241872203		Support-beam				$ 53.85
