SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet

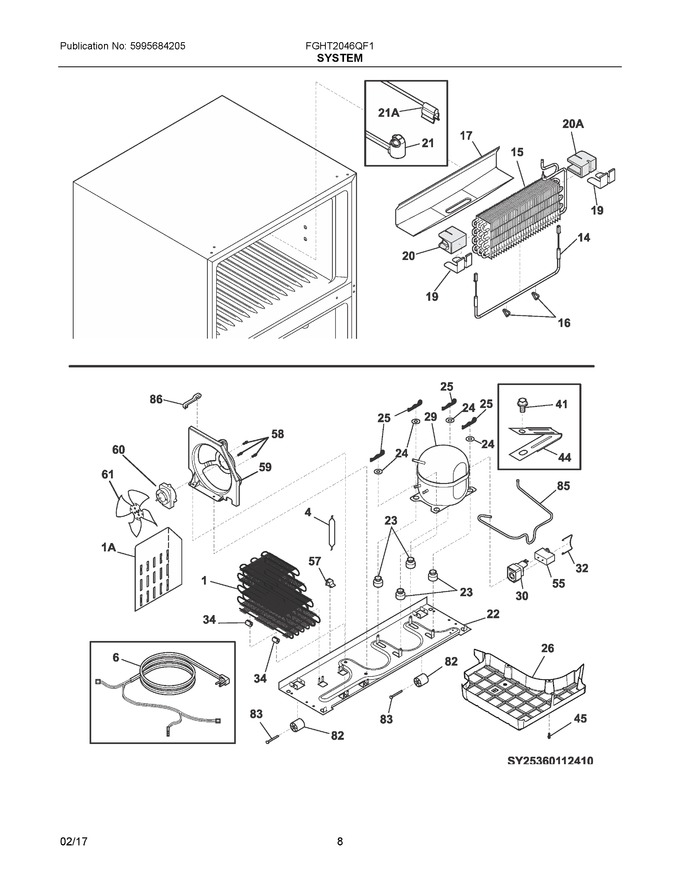

04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241785405		Condenser, Dynamic				$ 150.26
4	5303305677		Dryer-filter   (Replaces: 242047603)			Immediately	$ 31.67
6	241872713		Harness, Wiring, Machine Compt.   (Replaces: 809161701)				$ 112.24
14	242044021		Heater-defrost				$ 109.15
15	5303918274		Evaporator Kit			Immediately	$ 423.67
16	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 59.82
17	241801301		Trough-drain				$ 64.46
19	242320401		Shield, Heat, Evap Block				$ 67.49
20	5304527429		Block, Evaporator, Rh   (Replaces: 242238401)				$ 11.22
21	242303203		Thermostat, Safety, Defrost		Appelez-nous	-
22	241665504		Base-compressor				$ 80.09
23	218513300		Grommet-compr Mtg, (4)				$ 42.53
24	241812301		Washer-compr Mtg				$ 12.89
25	242037701		Clip-compressor Mtg				$ 2.84
26	807694801		Pan-defrost				$ 72.29
29	240550946		Compressor, W/o Electricals   (Replaces: 240550940)			Immediately	$ 396.66
30	241941005		Starter				$ 114.84
32	297030500		Clamp, Elec Cont Mtg, Compressor			Immediately	$ 12.05
34	240405201		Grommet, Rubber, Black, Cond Tube/wire				$ 19.85
41	240555002		Screw-#8-32 X 3/8			Immediately	$ 13.46
44	215174700		Clamp-service Cord, Strain Relief, Galv Steel		Appelez-nous	-
45	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
55	297286803		Capacitor-run			Immediately	$ 28.77
57	240542601		Clip-wiring Harness		Appelez-nous	-
58	240569201		Screw, 8-18 X 0.500		Appelez-nous	-
59	241946106		Shroud-cond Fan				$ 45.36
60	242018301		Motor-condenser Fan			Immediately	$ 138.56
61	241639502		Blade-condenser Fan   (Replaces: 241639501)			Immediately	$ 21.99
82	240335202		Roller, Compressor Base, Rear				$ 21.27
83	5304455655		Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin			Immediately	$ 35.34
85	5304502967		Tube-connector, Suction				$ 30.24
86	240409302		Spacer-cond Tube, Black				$ 67.49
1A	242213901		Deflector, Air				$ 19.72
20A	5304527430		Block, Evaporator, Lh   (Replaces: 242238301)				$ 11.48
21A	242290503		Thermistor, Temperature, Defrost		Appelez-nous	-
NI	5303918327		Heat Exchanger Kit, Suction Line				$ 303.91
NIA	240346701		Tape-foam Seal, Shroud				$ 29.77
NIA	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
NIB	240359403		Screw-fan Shroud, (2)				$ 3.79
NIB	218709101		Screw, Hex Head, 10-32 X 0.500				$ 6.38

    View Diagram in Separate Window       Print Part List
