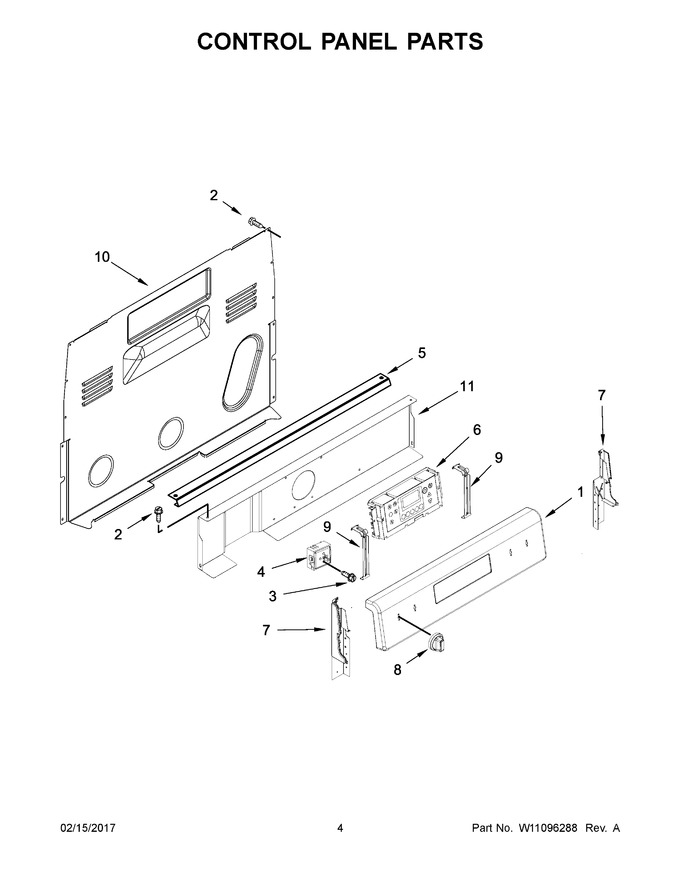

03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11092070		Console (black)   (Replaces: W10885609)				$ 462.73
2	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
3	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.47
4	WPW10434452		Switch, Infinite (dual) (left Front)   (Replaces: W10434452)			Immediately	$ 126.76
5	W10525121		Bracket, Console Mounting				$ 84.73
6	W11092468		Board, Control (black)   (Replaces: W10904688)			Immediately	$ 452.26
7	W11219664		Endpost, Console (black (left))   (Replaces: W10184437)				$ 131.85
8	W11092475		Knob (black)   (Replaces: W10892251)				$ 150.87
9	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 72.69
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 187.75
11	W10134247		Shield, Heat			Immediately	$ 307.56
1A	W11092069		Console (white)   (Replaces: W10885608)				$ 462.73
1B	W11096140		Console (stainless)   (Replaces: W10885607)			Immediately	$ 479.30
4A	5500-287		Switch, Infinite (left Rear & Right Rear)   (Replaces: 3148951)			Immediately	$ 47.15
4B	WP3149400		Switch, Infinite (right Front)   (Replaces: 3148954)			Immediately	$ 81.46
6A	W11092473		Board, Control (white)   (Replaces: W10904686)				$ 431.14
7A	W11219365		Endpost, Console (white (left))   (Replaces: W10184433)				$ 36.39
7B	W11219665		Endpost, Console (black (right))   (Replaces: W10184438)				$ 36.40
7C	W11219370		Endpost, Console (white (right))   (Replaces: W10184434)				$ 52.14
8A	W11092479		Knob (white)   (Replaces: W10892250)			Immediately	$ 70.57
8B	W11092479		Knob (stainless)   (Replaces: W10858250)			Immediately	$ 70.57
