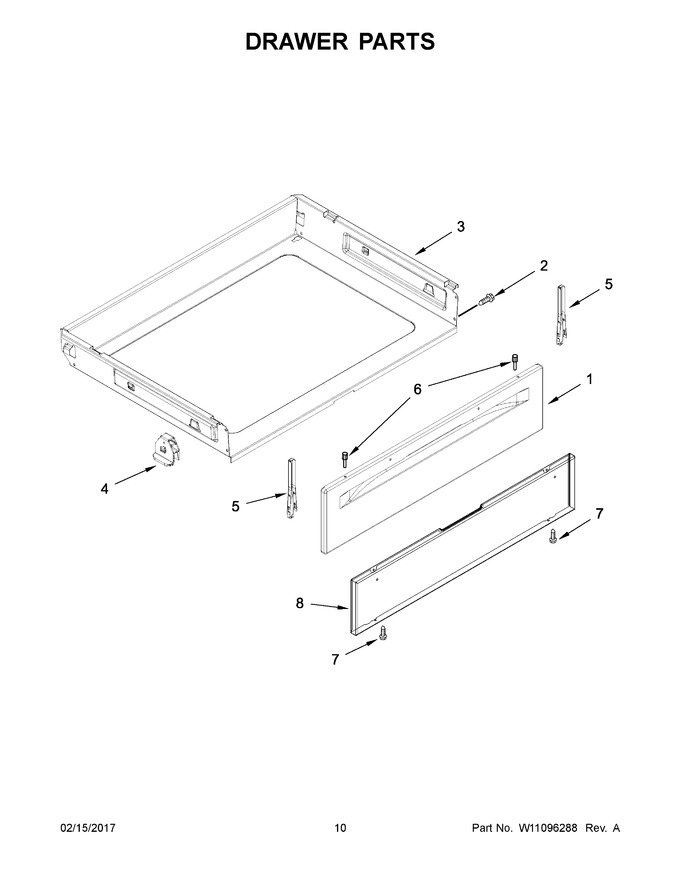

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11230488 | Panel, Drawer (black) (Replaces: 8053341) |
|
$ 182.09 | |||||
| 2 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 3 | W10813962 | Drawer, Storage (Replaces: W10688022) |
|
Immediately | $ 124.34 | ||||
| 4 | W10807828 | Glide, Drawer Rear (Replaces: W10674708) |
|
Immediately | $ 16.69 | ||||
| 5 | WPW10462912 | Bracket, Mounting Drawer (white And Black Models) (Replaces: W10462912) |
|
Immediately | $ 114.65 | ||||
| 6 | WP3196813 | Rivet, Push (black) (Replaces: 3196813) |
|
Immediately | $ 9.60 | ||||
| 7 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 8 | W11804929 | Panel, Drawer Front (stainless) (Replaces: W10861542) |
|
$ 159.92 | |||||
| 1A | W11219377 | Panel, Drawer (white) (Replaces: 8053339) |
|
$ 182.21 | |||||
| 5A | W10838990 | Bracket, Mounting Drawer (stainless Model) (Replaces: W10462910) |
|
Immediately | $ 76.24 | ||||
| 6A | WP3196814 | Rivet, Push (white) (Replaces: 3196814) |
|
Immediately | $ 9.49 |
