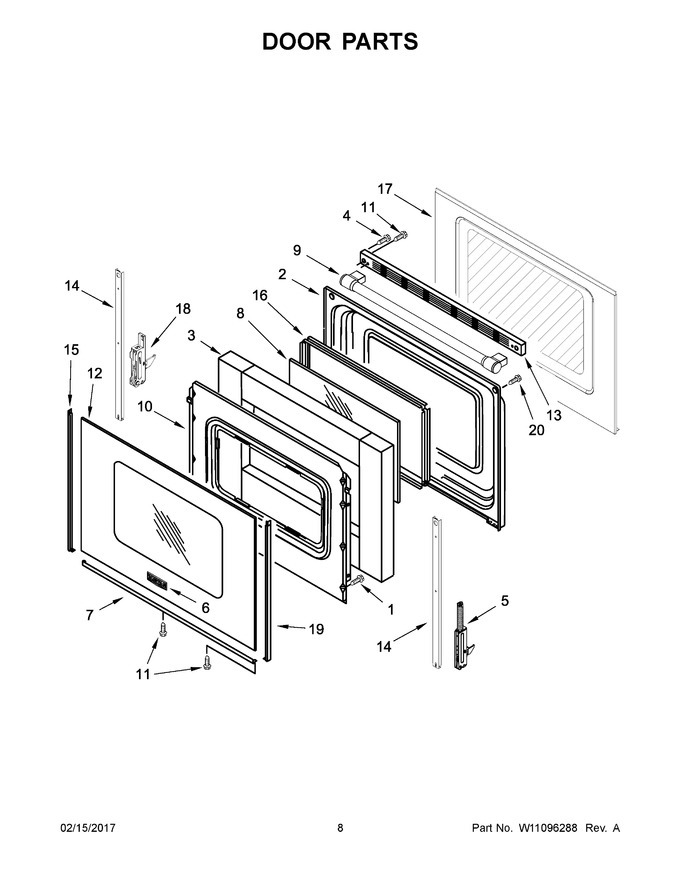

01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 2 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 319.62 | ||||
| 3 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 86.89 | ||||
| 4 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 7.00 | ||||
| 5 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 63.67 | ||||
| 6 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 36.31 | ||||
| 7 | WP8523177 | Trim, Lower Door (black) (Replaces: 8523177) |
|
Immediately | $ 142.16 | ||||
| 8 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
$ 160.45 | |||||
| 9 | W10920642 | Handle, Oven Door (black) (Replaces: W10889624) |
|
$ 193.91 | |||||
| 10 | W11539580 | Retainer, Insulation (Replaces: 9761357) |
|
$ 199.17 | |||||
| 11 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 7.09 | ||||
| 12 | W11702167 | Glass, Window (black) (Replaces: W10884159) |
|
Immediately | $ 158.34 | ||||
| 13 | W11093902 | Trim, Oven Door Vent (black) (Replaces: W10875233) |
|
$ 117.03 | |||||
| 14 | W11502236 | Strap, Door (Replaces: W10544179) |
|
Immediately | $ 23.72 | ||||
| 15 | W10761018 | Trim, Door (black (left)) (Replaces: W10746436) |
|
Immediately | $ 48.39 | ||||
| 16 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 76.37 | ||||
| 17 | W11250167 | Glass Assembly, Outer Door (stainless) (Replaces: W10861544) |
|
$ 403.28 | |||||
| 18 | WPW10299224 | Hinge, Active (with Spring) (Replaces: W10299224) |
|
Immediately | $ 66.12 | ||||
| 19 | W10761014 | Trim, Door (black (right)) (Replaces: W10746435) |
|
Immediately | $ 65.66 | ||||
| 20 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.26 | ||||
| 12A | WPW10409945 | Glass, Window (white) (Replaces: W10409945) |
|
Immediately | $ 223.91 | ||||
| 13A | W11093912 | Trim, Oven Door Vent (white) (Replaces: W10875232) |
|
$ 121.39 | |||||
| 13B | W11096161 | Trim, Oven Door Vent (stainless) (Replaces: W11047800) |
|
Immediately | $ 145.14 | ||||
| 15A | WP8523172 | Trim, Door (white (left)) (Replaces: 8523172) |
|
Immediately | $ 62.94 | ||||
| 19A | WP8523166 | Trim, Door (white (right)) (Replaces: 8523166) |
|
Immediately | $ 75.81 | ||||
| 7A | W11594186 | Trim, Lower Door (white) (Replaces: 8523175) |
|
Immediately | $ 52.61 | ||||
| 9A | W10920643 | Handle, Oven Door (white) (Replaces: W10889625) |
|
$ 194.11 | |||||
| 9B | W10912640 | Handle, Oven Door (stainless) (Replaces: W10834521) |
|
$ 194.87 |
