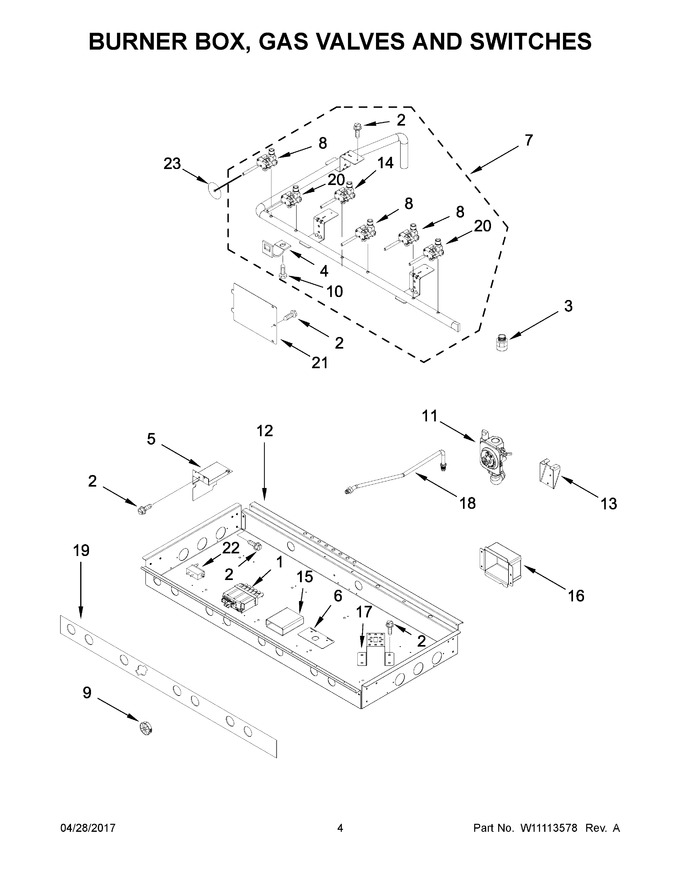

SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switches


04 - Chassis Parts


05 - Oven Parts


06 - Venting Parts


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10475147		Module, Spark   (Replaces: W10475147)			Immediately	$ 214.42
2	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
3	4453115		Adapter, Female				$ 108.60
4	WPW10432260		Bracket, Valve   (Replaces: W10432260)				$ 63.42
5	W10498404		Bracket, Spark Module				$ 156.37
6	W10115855		Holder, Strain Relief		Appelez-nous	-
7	W10402606		Assembly, Manifold		Appelez-nous	-
8	WPW10385582		Valve, Single   (Replaces: W10385582)			Immediately	$ 292.16
9	W10189097		Bushing, Burner Box				$ 6.85
10	W10189140		Screw				$ 5.85
11	W11193822		Regulator, Pressure   (Replaces: W10145584)				$ 255.06
12	W10371520		Box, Burner		Appelez-nous	-
13	W10308042		Bracket, Pressure Regulator		Appelez-nous	-
14	WPW10385583		Valve, Simmer   (Replaces: W10385583)			Immediately	$ 284.66
15	8287102		Insulation, Spark Module		Appelez-nous	-
16	W10308051		Box, Broil		Appelez-nous	-
17	W10560553		Bracket, Burner		Appelez-nous	-
18	W10348600		Tube, Pressure Regulator				$ 177.62
19	W11688578		Insulation, Burner Box   (Replaces: W10145622)		Appelez-nous	-
20	WPW10371235		Valve, Dual   (Replaces: W10371235)			Immediately	$ 241.57
21	W10115843		Cover, Ignition		Appelez-nous	-
22	W11601369		Reignitor   (Replaces: W10116108)			Immediately	$ 60.62
23	W10189177		Seal, Switch Cover				$ 8.57
NI	W10145488		Tube (center Rear)		Appelez-nous	-
NI	W10368168		Tube (center Front)		Appelez-nous	-
NI	WPW10368165		Tube (left Rear)   (Replaces: W10368165)				$ 63.53
NI	W10368167		Tube (left Front, High)				$ 149.76
NI	W10368166		Tube (left Front, Low)				$ 46.28
NI	WPW10368169		Tube (right Rear)   (Replaces: W10368169)				$ 63.93
NI	W10368177		Tube (right Front, High)		Appelez-nous	-
NI	W10353154		Tube (left Front)			Immediately	$ 148.10
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
