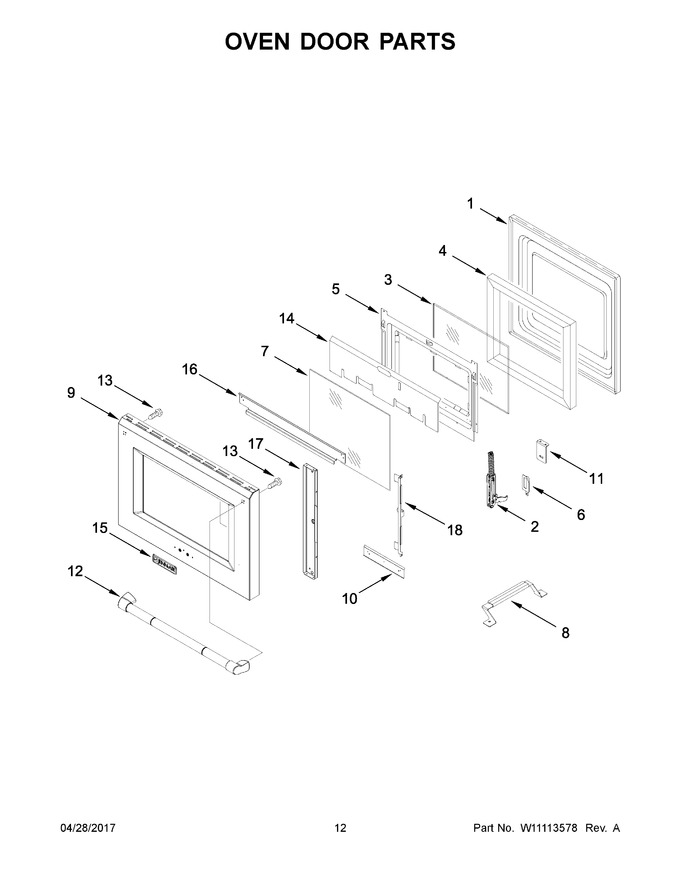

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10188330		Panel, Door				$ 137.38
2	W10774099		Hinge, Door (left)			Immediately	$ 98.07
3	WPW10226005		Glass, Inner   (Replaces: W10226005)				$ 264.02
4	W11706557		Insulation, Door   (Replaces: W10115765)				$ 60.51
5	W10859077		Retainer, Glass   (Replaces: W10188324)				$ 193.61
6	W10115876		Cover, Hinge (left)		Appelez-nous	-
7	WPW10188327		Glass, Inner   (Replaces: W10188327)				$ 202.12
8	9759230		Bracket, Central				$ 36.30
9	W10145757		Panel, Exterior		Appelez-nous	-
10	W10226024		Shield, Heat Bottom		Appelez-nous	-
11	W10115715		Bracket, Door Top		Appelez-nous	-
12	W10145770		Handle, Door				$ 276.50
13	WPW10276043		Screw   (Replaces: W10276043)				$ 6.26
14	W10188328		Shield, Heat Top		Appelez-nous	-
15	WPW10159578		Nameplate (stainless)   (Replaces: W10159578)			Immediately	$ 75.89
16	W10145764		Bracket, Center Outer Glass		Appelez-nous	-
17	W10145761		Bracket, Outer Glass Side		Appelez-nous	-
18	WP9759229		Bracket, Side   (Replaces: 9759229)				$ 160.71
2A	W10774098		Hinge, Door (right)			Immediately	$ 98.07
6A	W10115877		Cover, Hinge (right)		Appelez-nous	-
