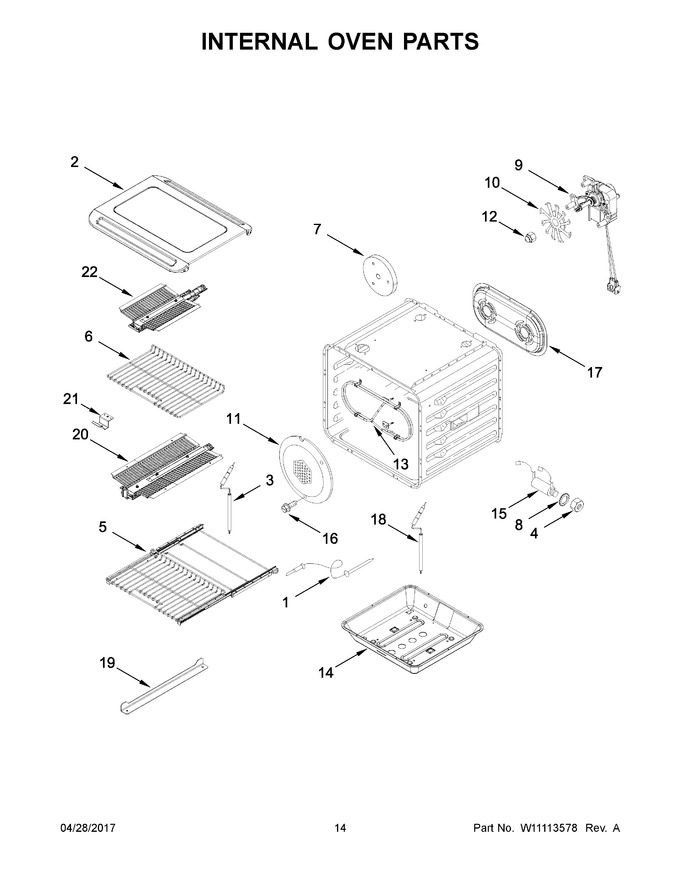

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 82.91 | ||||
| 2 | WPW10272546 | Bottom, Oven (Replaces: W10272546) |
|
Immediately | $ 190.73 | ||||
| 3 | W11446096 | Electrode, Broil (Replaces: W10332287) |
|
Immediately | $ 68.10 | ||||
| 4 | WP9755546 | Nut, Hidden (Replaces: 9755546) |
|
$ 6.26 | |||||
| 5 | W10570868 | Rack, Oven (sliding) |
|
$ 169.33 | |||||
| 6 | W10822069 | Rack, Oven |
|
Immediately | $ 113.69 | ||||
| 7 | W11688507 | Insulation, Convection Cover (Replaces: W10282821) |
|
Immediately | $ 23.23 | ||||
| 8 | WP9755547 | Washer, Lock (Replaces: 9755547) |
|
$ 5.49 | |||||
| 9 | W10794440 | Motor, Convection (Replaces: W10631506) |
|
Immediately | $ 284.83 | ||||
| 10 | W10819914 | Blade, Fan (Replaces: W10631503) |
|
Immediately | $ 76.01 | ||||
| 11 | W10261523 | Plate, Fan |
|
$ 66.73 | |||||
| 12 | W10794042 | Nut, Acorn (lh) (Replaces: W10631504) |
|
$ 11.26 | |||||
| 13 | W11033310 | Element, Convection (Replaces: W10145949) |
|
$ 139.10 | |||||
| 14 | WPW10145744 | Support, Bake Pan (Replaces: W10145744) |
|
$ 183.56 | |||||
| 15 | 8186589 | Jack, Meat Probe (Replaces: 9755543) |
|
Immediately | $ 97.22 | ||||
| 16 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 17 | W10246060 | Baffle, Convection |
|
$ 154.65 | |||||
| 18 | W11448312 | Electrode, Bake (Replaces: W10878506) |
|
Immediately | $ 59.13 | ||||
| 19 | W10317437 | Bracket, Broil Standoff |
|
- | |||||
| 20 | W11661180 | Burner, Broil (Replaces: W10311335) |
|
$ 148.96 | |||||
| 21 | W10308040 | Bracket, Bake Burner |
|
- | |||||
| 22 | W11643161 | Burner, Bake (Replaces: W10878504) |
|
Immediately | $ 157.97 |
