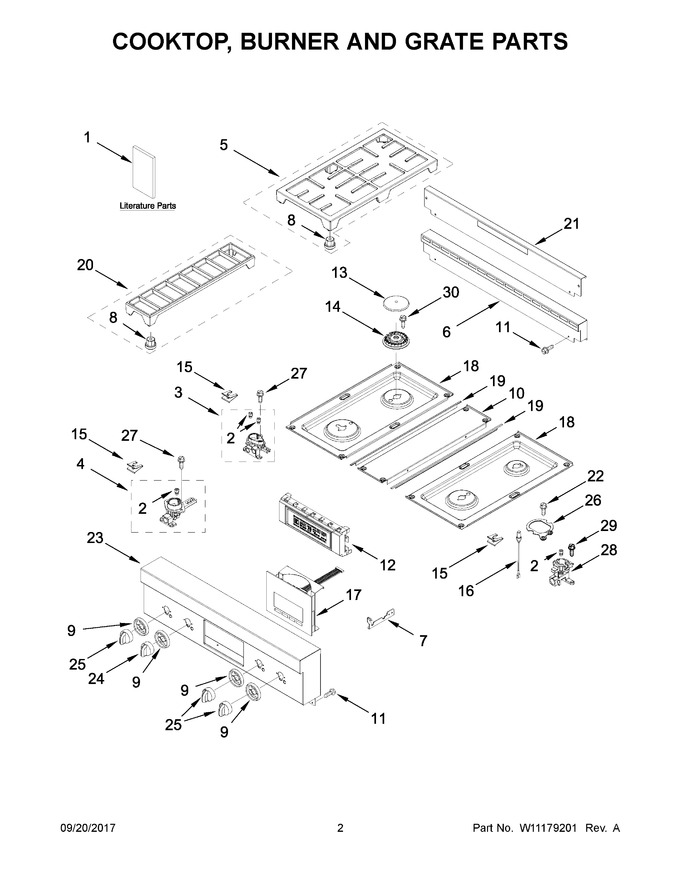

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switches


04 - Chassis Parts


05 - Oven Parts


06 - Top Venting


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11090455		Instructions, Installation		Appelez-nous	-
2	W10340425		Orifice (high) (left Front, High)		Appelez-nous	-
3	W11169678		Assembly, Orifice Holder (left Front)   (Replaces: W10905356)				$ 108.08
4	W11169679		Assembly, Orifice Holder (left Rear & Right Front)   (Replaces: W10905358)		Appelez-nous	-
5	W11344501		Assembly, Grate (black)   (Replaces: W10276551)			Immediately	$ 218.28
6	W10323247		Trim, Island				$ 395.07
7	W10130760		Bracket, Moving Console (left)				$ 75.94
8	9759322		Pad, Grate		Appelez-nous	-
9	W10276494		Bezel				$ 80.42
10	W10189105		Filler, Cooktop		Appelez-nous	-
11	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
12	W10464535		Assembly, Keypad				$ 1,125.19
13	WPW10256034		Cap, Burner (black (left Front))   (Replaces: W10256034)				$ 138.19
14	W11106799		Spreader, Flame (left Front)   (Replaces: W10879806)			Immediately	$ 102.08
15	W11684564		Spring, Electrode (left Front, Left Rear, Right Front)   (Replaces: W10827923)			Immediately	$ 12.65
16	W10854967		Electrode, Burner (right Rear)   (Replaces: 8286725)			Immediately	$ 48.38
17	WPW10145531		Assembly, Power Supply   (Replaces: W10145531)			Immediately	$ 323.23
18	W10352968		Cooktop (black (right))				$ 337.26
19	W10271524		T-strip				$ 212.34
20	W11241675		Grate, Filler   (Replaces: W10276495)				$ 194.76
21	W10323248		Insert, Island Trim				$ 268.00
22	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
23	W10789952		Panel, Control				$ 573.45
24	W10145568		Knob, Dual (stainless (left Front))				$ 52.92
25	W10145454		Knob, Single (stainless (all Except Left Front))				$ 46.94
26	8286930		Gasket, Orifice				$ 95.73
27	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 7.55
28	W10813995		Holder, Orifice (aux) (right Rear)		Appelez-nous	-
29	W11676349		Screw, Burner Rail (m4)   (Replaces: 8286921)			Immediately	$ 14.76
30	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
13A	WPW10256032		Cap, Burner (black (left Rear & Right Front))   (Replaces: W10256032)			Immediately	$ 88.38
13B	WPW10364463		Cap, Burner (black (right Rear))   (Replaces: W10364463)			Immediately	$ 55.85
14A	WPW10256027		Spreader, Flame (left Rear & Right Front)   (Replaces: W10256027)			Immediately	$ 101.02
14B	WPW10282515		Spreader, Flame (right Rear)   (Replaces: W10282515)			Immediately	$ 149.87
15A	8286863		Spring, Electrode (right Rear)				$ 76.92
18A	W10352969		Cooktop (black (left))				$ 335.75
1A	W11090435		Guide, Use & Care		Appelez-nous	-
1B	W10403308		Sheet, Tech (english)		Appelez-nous	-
1C	W10403309		Sheet, Tech (french)		Appelez-nous	-
2A	W10371246		Orifice (low) (left Front, Low)		Appelez-nous	-
2B	W10371247		Orifice (11k) (left Rear & Right Front)		Appelez-nous	-
2C	W10282664		Orifice (3k) (right Rear)		Appelez-nous	-
7A	W10130759		Bracket, Moving Console (right)				$ 75.94
NI	W10116168		Harness, Main			Immediately	$ 284.61
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10624584		Cord, Power				$ 189.57
NI	4450800		Screw, Grounding				$ 13.47
NI	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 59.88
NI	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
NI	8287106		Clip, Wire   (Replaces: W10183556)		Appelez-nous	-
NI	W11675299		Tie, Cable   (Replaces: W10368807)				$ 13.53
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	W10145988		Harness, Switch				$ 168.55
NI	W10856625		Reducer, Stem   (Replaces: W10340850)				$ 189.23
NI	W10763500		Harness, Ignition (includes 3 Igniters)			Immediately	$ 183.87
NI	W10344051		Harness, Communication				$ 133.32
NI	W10780278		Harness, Door Lock			Immediately	$ 95.87
