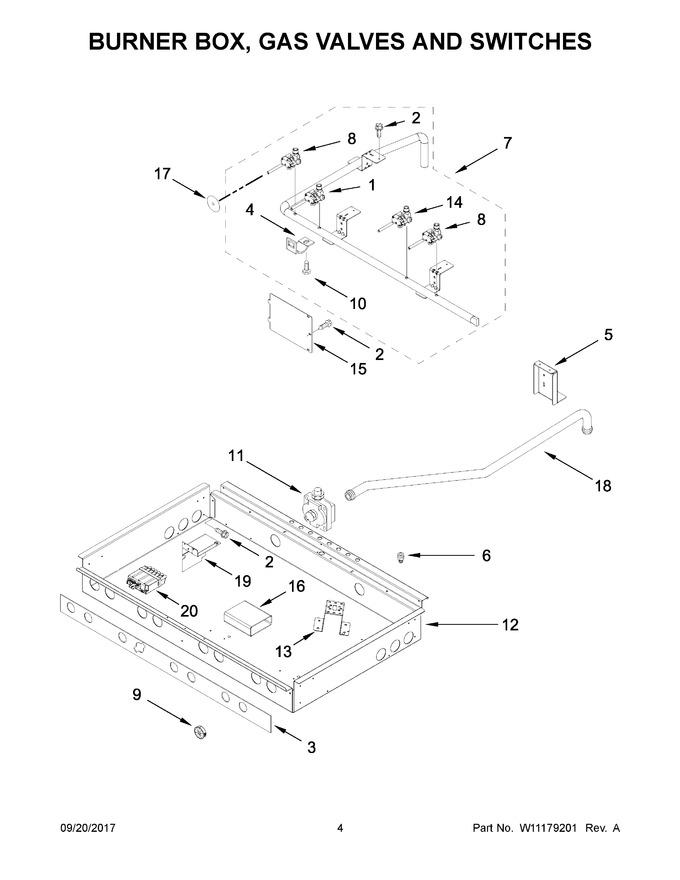

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10371235		Valve, Dual   (Replaces: W10371235)			Immediately	$ 241.57
2	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
3	W11706804		Insulation, Burner Box   (Replaces: W10276534)		Appelez-nous	-
4	WPW10432260		Bracket, Valve   (Replaces: W10432260)				$ 63.42
5	W10308042		Bracket, Pressure Regulator		Appelez-nous	-
6	4453115		Adapter, Female				$ 108.60
7	W10815793		Manifold		Appelez-nous	-
8	W10813922		Valve, Single				$ 242.67
9	W10189097		Bushing, Burner Box				$ 6.85
10	W10189140		Screw				$ 5.85
11	W10813917		Regulator, Pressure				$ 253.81
12	N/P		Box, Burner (not Serviced)		Appelez-nous	-
13	W10560553		Bracket, Burner		Appelez-nous	-
14	W10813921		Valve, Simmer		Appelez-nous	-
15	W10115843		Cover, Ignition		Appelez-nous	-
16	8287102		Insulation, Spark Module		Appelez-nous	-
17	W10189177		Seal, Switch Cover				$ 8.57
18	W10348600		Tube, Pressure Regulator				$ 177.62
19	W10498404		Bracket, Spark Module				$ 156.37
20	WPW10475147		Module, Spark   (Replaces: W10475147)			Immediately	$ 214.42
NI	W10368335		Tube (right Front)			Immediately	$ 147.93
NI	W10276501		Tube (right Rear)		Appelez-nous	-
NI	W10368167		Tube (left Front, High)				$ 149.76
NI	W10368166		Tube (left Front, Low)				$ 46.28
NI	WPW10368165		Tube (left Rear)   (Replaces: W10368165)				$ 63.53
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
