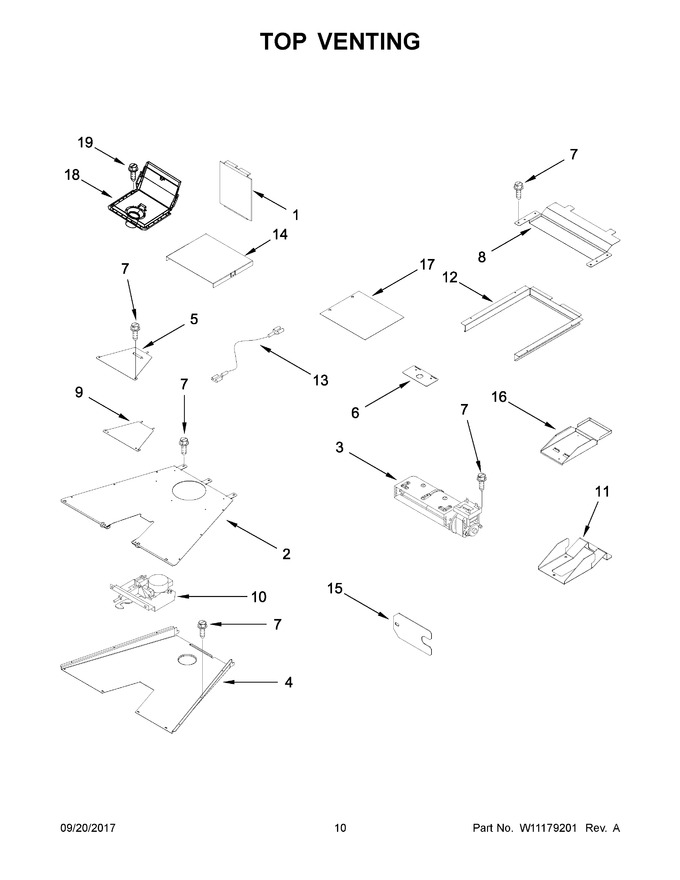

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10246087		Insulation, Chimney		Appelez-nous	-
2	W10299182		Vent, Cooling Top (30")			Immediately	$ 129.39
3	WPW10245511		Blower 60mm   (Replaces: W10245511)			Immediately	$ 275.42
4	W10349015		Vent, Cooling Bottom (30")			Immediately	$ 172.35
5	W10160875		Plate, Cooling Latch		Appelez-nous	-
6	W10115855		Holder, Strain Relief		Appelez-nous	-
7	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
8	W10145748		Bracket, Blower (30")		Appelez-nous	-
9	W10160858		Cover, Latch				$ 65.95
10	W11029221		Latch, Motorized   (Replaces: W10830016)			Immediately	$ 280.85
11	W10308039		Bracket, Bake Alignement		Appelez-nous	-
12	W10145363		Duct, Primary Air (30")		Appelez-nous	-
13	W10830796		Wire, Electrode		Appelez-nous	-
14	W10246086		Retainer, Insulation		Appelez-nous	-
15	W10145381		Cover, Channel		Appelez-nous	-
16	W10853036		Support, Control		Appelez-nous	-
17	W10239444		Seal, Control		Appelez-nous	-
18	W10340579		Vent, Chimney Box (30" / 36")		Appelez-nous	-
19	WP3400805		Screw (zinc)   (Replaces: 3400805)				$ 6.47
