Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 327320 Screw 10-16x7/16`` Appelez-nous -
2 328956 Screw 4-40x11/16`` Appelez-nous -
3 329170 Micro Switch Appelez-nous -
4 328486 Cover-lock Rod Appelez-nous -
5 288248 Screw 10-24x1/4`` Appelez-nous -
6 328470 Extension-handle Appelez-nous -
7 313075 Spring Appelez-nous -
8 328489 Lock Box Appelez-nous -
9 21067 Washer Appelez-nous -
10 328656 Latch Assm. (inc`s. Key 7) Appelez-nous -
11 328474 Clip-knob Appelez-nous -
12 328475 Knob-lock Appelez-nous -
13 333710 Handle-latch Appelez-nous -
14 328472 Insulation-latch Appelez-nous -
15 329171 Insulator-switch (3 Req) Appelez-nous -
16 329169 Micro Switch Appelez-nous -
17 331081 Screw 4-40 X1 9/16`` Appelez-nous -
18 328490 Wire Cover-latch Switches Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

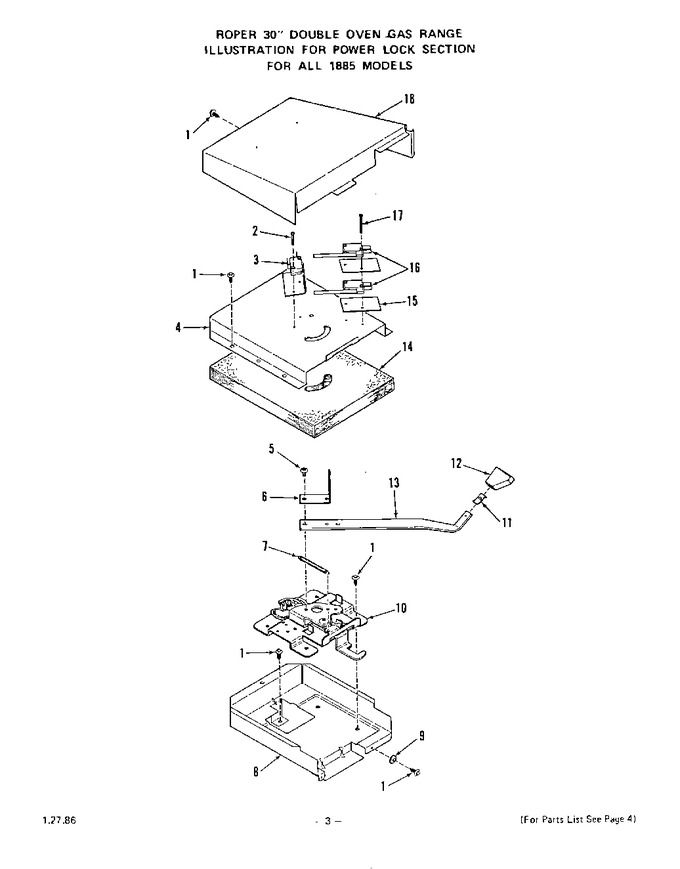

Diagram for 1885^1A
