Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 327320 Screw 10-16x7/16`` Appelez-nous -
2 327075 Rear Top Burner-rt. Or Lt. (inc`s. Key 4) Appelez-nous -
3 327074 Front Top Burner-rt. Or Lt. (inc`s.key 4) Appelez-nous -
4 327198 Air Shutter Appelez-nous -
5 329462 Right Appelez-nous -
5 329464 Left Appelez-nous -
6 327073 Support-top Burner (lt. Or Rt.) Appelez-nous -
7 312453 Bracket-spark Igniter (lt. Or Rt.) Appelez-nous -
8 324528 18851a Models Appelez-nous -
8 324529 18850a Models Appelez-nous -
9 311455 Mounting Screw 1/4-20 Appelez-nous -
10 113384 Inverted Nut 3/8`` Appelez-nous -
11 326830 Shut Off Valve Appelez-nous -
12 313563 Rubber Gasket Appelez-nous -
13 328488 Manifold Pipe Appelez-nous -
14 311692 Rubber Gasket Appelez-nous -
18 331996 Gas Valve (4 Req) Appelez-nous -
19 310253 Switch-gas Valve (4 Req) Appelez-nous -
20 277368 Tubing 3/8`` (shut-off Valve To Tee) Appelez-nous -
21 237387 Tee 3/8`` Appelez-nous -
22 315073 18850a Models Appelez-nous -
22 331399 18851a Models Appelez-nous -
23 331724 18851a Models Appelez-nous -
23 280436 18850a Models Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

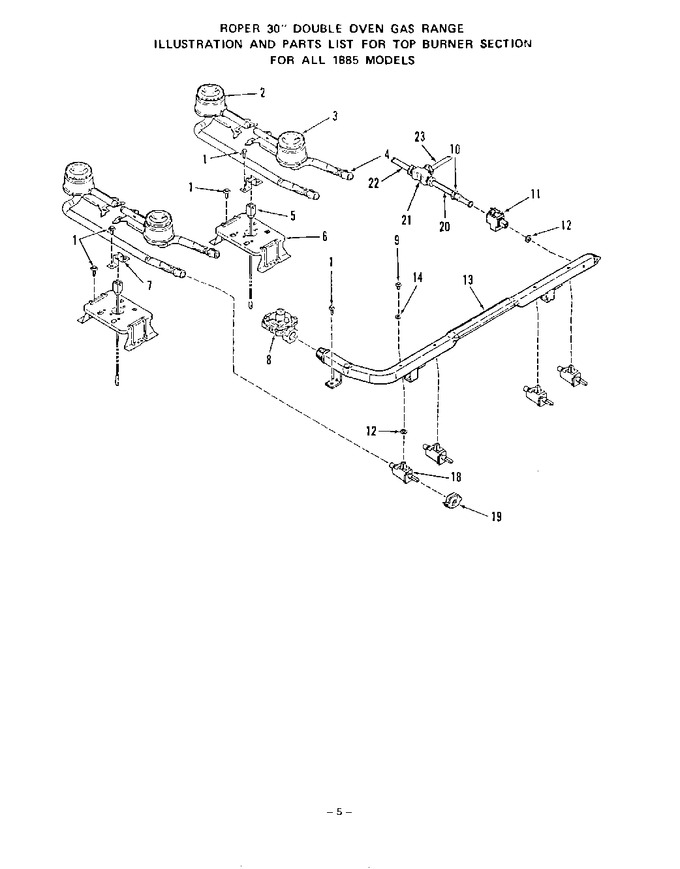

Diagram for 1885^1A
