Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 103595 Wire Connector Appelez-nous -
2 WG02F04373 Igniter-broiler & Oven Burner   (Replaces: 319887) In-Stock Immediately $ 109.23

3 327804 Bracket-broiler Burner Igniter Appelez-nous -
4 327807 Baffle-broiler Burner Appelez-nous -
5 327320 Screw 10-16x7/16`` Appelez-nous -
6 330163 Broiler Burner (inc`s. Keys 7, 8, 9, 15) Appelez-nous -
7 328660 Baffle Appelez-nous -
8 312989 Adjustment Screw -air Shutter Appelez-nous -
9 312988 Air Shutter Appelez-nous -
10 113384 Inverted Nut 3/8`` Appelez-nous -
11 WP112432 Screw 10-32x7/16``   (Replaces: 311484) Special Order $ 7.16

12 286823 Tubing 3/8`` (control Valve To Broiler Orifice) Appelez-nous -
13 331992 18851a Models Appelez-nous -
13 330262 18850a Models Appelez-nous -
14 328350 Timer Appelez-nous -
15 97217 Screw 8 - 32x3/8`` Appelez-nous -
17 98186 Ballast Appelez-nous -
18 329382 Screw 6-20x3/8`` Appelez-nous -
19 329903 Shield Appelez-nous -
20 328480 Baffle-oven Burner Appelez-nous -
21 331864 18851a Models Appelez-nous -
21 328471 18850a Models Appelez-nous -
22 329488 Range Service Cord Appelez-nous -
23 78565 Screw 8-32x3/16`` Appelez-nous -
24 320990 Module-spark Igniter Appelez-nous -
25 329442 Mounting Bracket-components Appelez-nous -
26 232150 Disconnect Appelez-nous -
27 106767 Clip Appelez-nous -
28 328481 Cover-control Valve Appelez-nous -
29 328482 18850a Models Appelez-nous -
29 333746 18851a Models Appelez-nous -
30 311689 Bracket-igniter Appelez-nous -
31 327775 Bottom-oven Burner Box Appelez-nous -
32 329279 Insulation Retainer-oven Orifice Appelez-nous -
33 328473 Plate-orifice Fitting Appelez-nous -
34 328479 Latch-oven Burner Box Bottom Appelez-nous -
35 328584 Shoulder Screw Appelez-nous -
36 329174 18850a Models Appelez-nous -
36 331994 18851a Models Appelez-nous -
37 306267 Control Valve Appelez-nous -
38 331399 18851a Models Appelez-nous -
38 315073 18850a Models Appelez-nous -

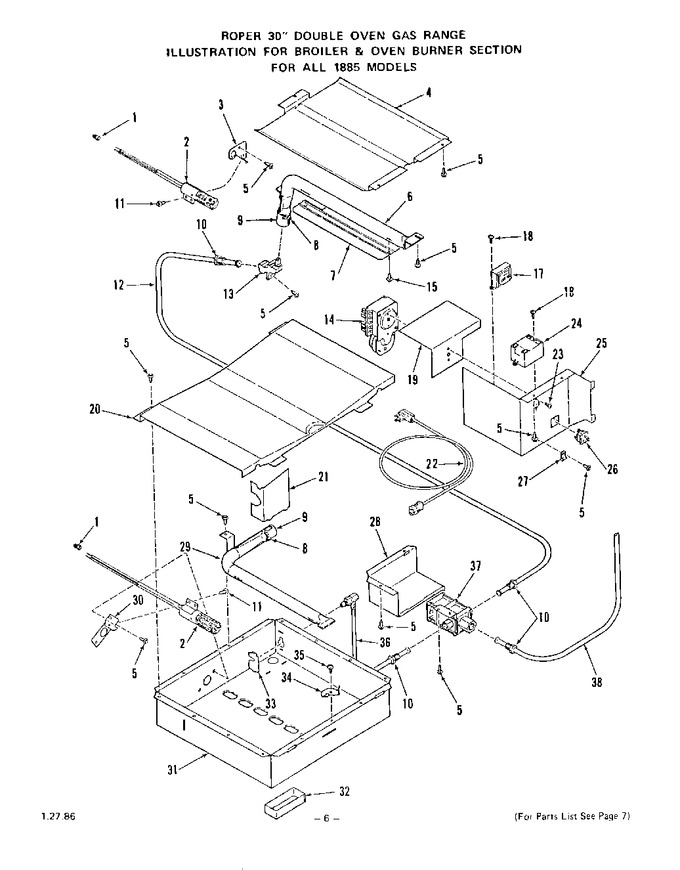

    View Diagram in Separate Window     Print Icon   Print Part List
