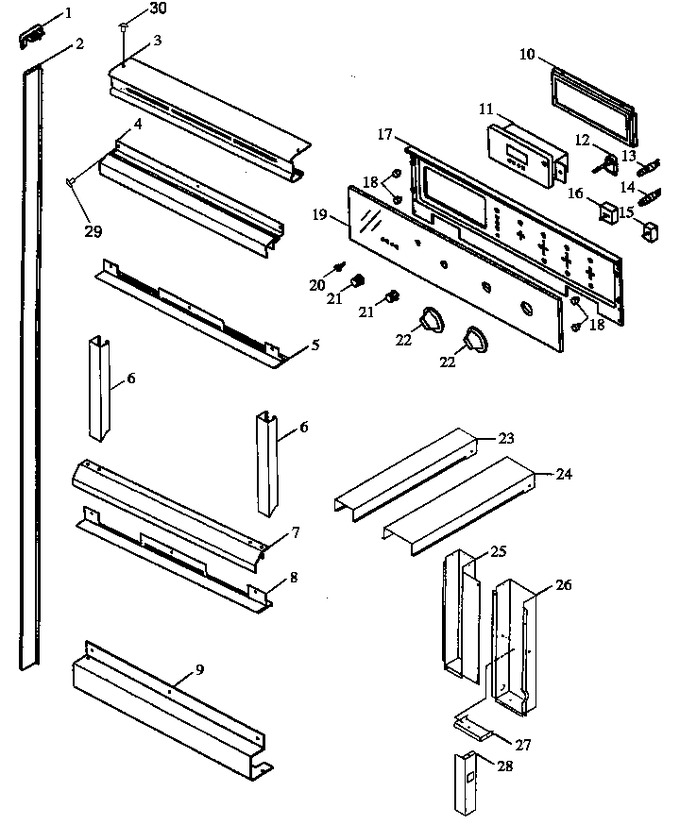

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307888B		Trim, Corner-lt (blk)		Appelez-nous	-
1	307887B		Trim, Corner-rt (blk)		Appelez-nous	-
2	307724B		Trim, Side Right		Appelez-nous	-
2	307723B		Trim, Side Left		Appelez-nous	-
3	307719B		Trim, Top (blk)		Appelez-nous	-
4	307721B		Trim, Cont. Panel Top		Appelez-nous	-
5	307722B		Trim, Cont. Panel Bottom		Appelez-nous	-
6	314329B		Trim, Side Filler R.h.		Appelez-nous	-
6	314328B		Trim, Side Filler L.h.		Appelez-nous	-
7	307725B		Trim, Center Upper		Appelez-nous	-
8	307726B		Trim, Center Lower		Appelez-nous	-
9	307720B		Trim, Bottom (blk)		Appelez-nous	-
10	0302748		Bracket, Clock		Appelez-nous	-
11	Y0302106		Clock, Electronic		Appelez-nous	-
12	Y0308168		Switch, Oven Light		Appelez-nous	-
13	Y0042183		Indicator Light		Appelez-nous	-
15	0307771		Thermostat - Self Clean		Appelez-nous	-
16	0308356		Switch, Selector		Appelez-nous	-
17	307876B		Bkt, Control Panel (blk)		Appelez-nous	-
18	Y0063661		Bumper, Oven Door		Appelez-nous	-
19	307871B		Glass, Control Panel (blk)		Appelez-nous	-
20	307821B		Button, Set W/cushion (blk)		Appelez-nous	-
21	314315B		Knob, Clock (black)		Appelez-nous	-
22	307372B		Knob, Control		Appelez-nous	-
23	Y0308011		Top Vent, L H		Appelez-nous	-
24	0308010		Top Vent		Appelez-nous	-
25	0307304		Duct, Rear Louver		Appelez-nous	-
26	Y0307305		Tube, Rear Duct		Appelez-nous	-
27	Y0308006		Duct, Divider		Appelez-nous	-
28	0308007		Rec Mount-e Ct		Appelez-nous	-
29	0302844		Screw No.8 18 X 1/2 Black		Appelez-nous	-
29	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65
30	31750319		Screw, No.6-32 X .375 Fh (blk)		Appelez-nous	-
NI	Y0306067		Seal, Tesamol 28``		Appelez-nous	-
NI	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47
NI	31750311		Screw, No.6-32 X .375 Pan Hd Ph		Appelez-nous	-
NI	309339B		Dial, Thermostat		Appelez-nous	-
NI	Y0042012		Switch Bushing ,metal		Appelez-nous	-
NI	Y0308008		Receptacle		Appelez-nous	-
NI	31750302		Screw, No.3-32 X.187 Pan Hd Ph		Appelez-nous	-
NI	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
NI	309338B		Dial, Selector		Appelez-nous	-
