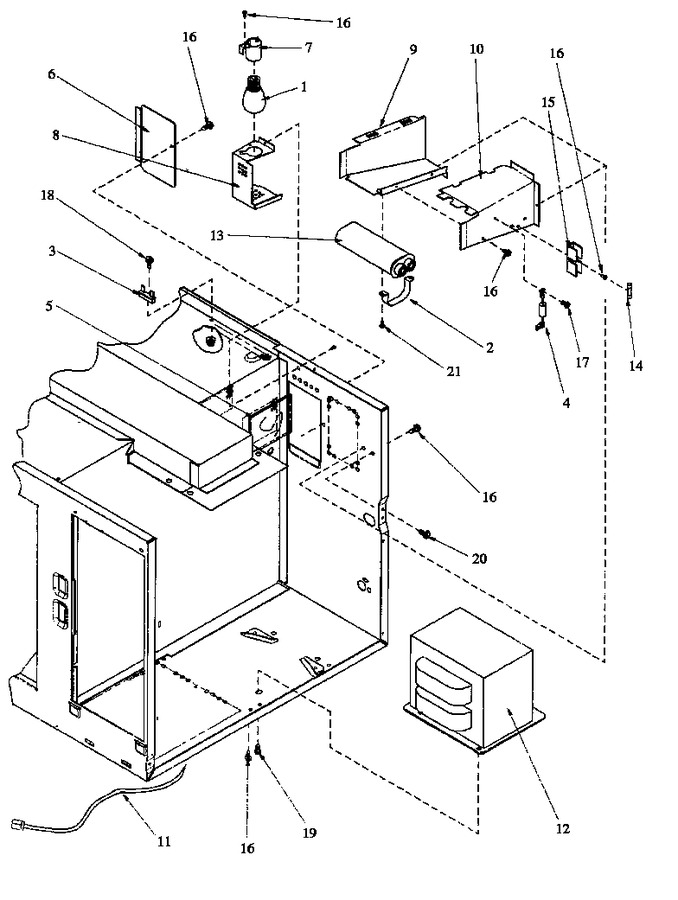

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8009 | Lamp 41w (Replaces: 10664503) |
|
Immediately | $ 16.80 | ||||
| 2 | A4055405 | Strap, Capacitor |
|
- | |||||
| 3 | B5795305 | Fuse, Thermal |
|
- | |||||
| 4 | 11QBP0527 | Rectifier (Replaces: B8383101) |
|
$ 18.64 | |||||
| 5 | B8367701 | Window, Oven Light |
|
- | |||||
| 6 | B8370701 | Cover, Light |
|
- | |||||
| 7 | B8371401 | Receptacle, Lamp |
|
- | |||||
| 8 | D7772101 | Shield, Light |
|
- | |||||
| 9 | D7772005 | Duct, Top Air |
|
- | |||||
| 10 | D7772202 | Air Duct. Bottom |
|
- | |||||
| 11 | D7685629 | Wire-high Voltage, Jumper |
|
- | |||||
| 12 | 10426601 | Transformer |
|
- | |||||
| 13 | 59001651 | Capacitor-.80 (Replaces: D8547929) |
|
$ 43.15 | |||||
| 14 | M0805301 | Fuse |
|
- | |||||
| 15 | 10091101 | Fuse Holder |
|
- | |||||
| 16 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 17 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 18 | M0225929 | Screw |
|
- | |||||
| 19 | WP3390631 | Screw (Replaces: M0216729) |
|
$ 7.04 | |||||
| 20 | 12992301 | Screw, Tf (Replaces: M0231604) |
|
$ 7.32 | |||||
| 21 | M0216517 | Screw |
|
- |
