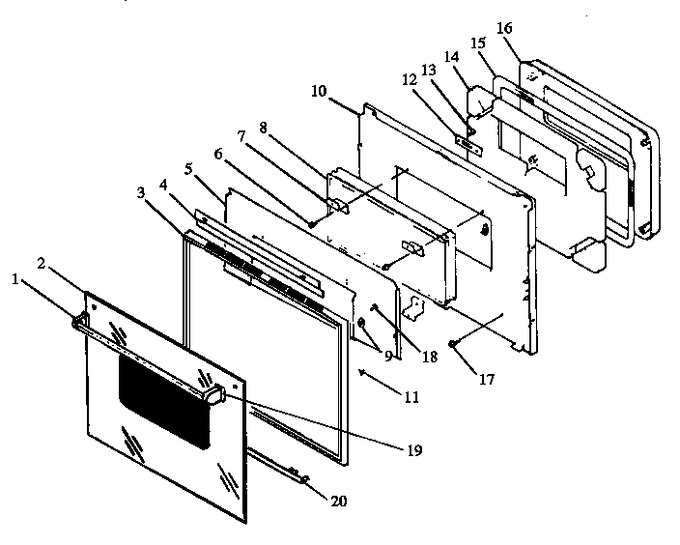

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307884B		Handle, Oven Door (blk)		Appelez-nous	-
1	30041809		Screw		Appelez-nous	-
2	307885B		Glass, Door (blk)		Appelez-nous	-
3	307886B		Frame, Oven Door (blk)		Appelez-nous	-
4	0307891		Bracket, Handle Mtg.		Appelez-nous	-
5	308414B		Baffle, Inner Door		Appelez-nous	-
6	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
7	Y0040955		Window Mtg. Brkt. Pk411		Appelez-nous	-
8	0041491		Window Assy		Appelez-nous	-
9	Y0307893		Bushing, Handle		Appelez-nous	-
10	314833CG		Liner, Door (cg)		Appelez-nous	-
11	0302844		Screw No.8 18 X 1/2 Black		Appelez-nous	-
12	Y0052039		Latch Plate		Appelez-nous	-
14	Y0041975		Insulation 2x20x72		Appelez-nous	-
15	31715901		Gasket, Oven Dr 82``				$ 14.46
16	40223CG		Backer, Oven Door (cg)		Appelez-nous	-
17	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
18	31750511		Screw, No.10-32x1/2 (ph Taptite)		Appelez-nous	-
19	309882B		Spacer, Handle (blk)		Appelez-nous	-
20	305587B		Angle, Glass Support (blk)		Appelez-nous	-
NI	31750006		Washer, Lock 13/16 X 3/8 O.d.		Appelez-nous	-
NI	0300584		Label,cleaning Instr.		Appelez-nous	-
