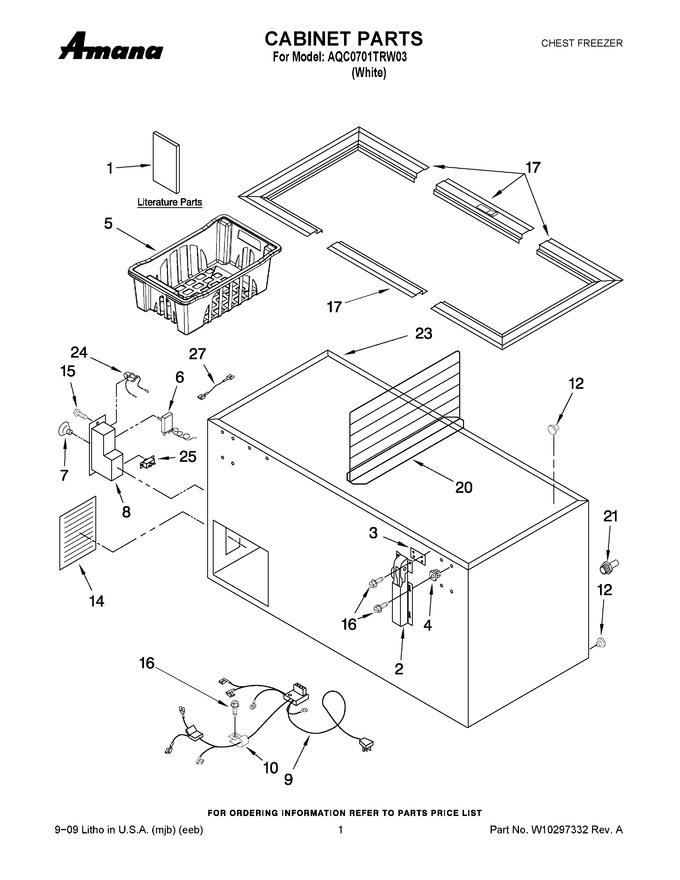

01 - Cabinet Parts


02 - Door Parts


03 - Unit Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10281247		Energy Guide/tag		Appelez-nous	-
1	W10281250		Owners Manual		Appelez-nous	-
2	4356723		Hinge, Assembly				$ 174.99
3	1-17548-006		Spacer, Hinge   (Replaces: 4356463)				$ 18.64
4	4356321		Plastic, Grommet				$ 11.72
5	W10297207		Basket		Appelez-nous	-
6	WP4-35940-001		Thermostat   (Replaces: 8210276)				$ 148.16
7	4356769		Knob, Thermostat		Appelez-nous	-
8	W10682894		Control Box   (Replaces: W10297413)		Appelez-nous	-
9	4-35130-004		Harness, Wiring   (Replaces: 4356743)				$ 209.65
10	488946		Plastic, Clip   (Replaces: 4356643)				$ 18.41
12	4356456		Drain, Plug		Appelez-nous	-
14	4356622		Access Panel				$ 70.79
15	3-24004-049		Screw   (Replaces: 4356583)		Appelez-nous	-
16	4356491		Screw		Appelez-nous	-
17	W10297414		Breaker Strip		Appelez-nous	-
20	4356731		Divider (optional)		Appelez-nous	-
21	W11663505		Adapter, Drain Cabinet (not A Serviceable Part)   (Replaces: 4356481)				$ 15.45
23	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
24	8210321		Alarm (buzzer)		Appelez-nous	-
25	2-32307		Switch, Alarm   (Replaces: 8210323)				$ 76.86
27	8210324		Wire, Lead		Appelez-nous	-
