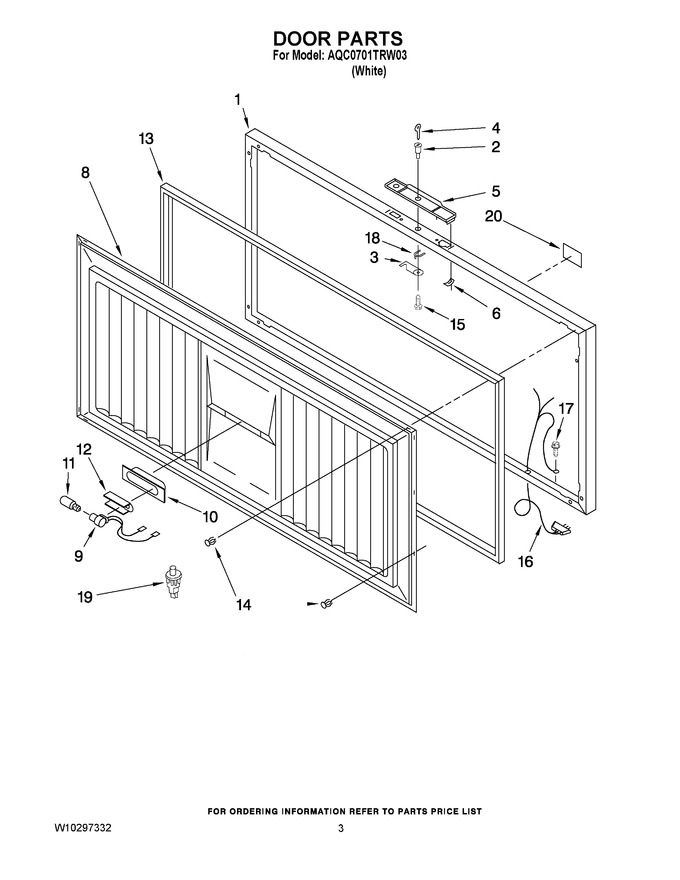

01 - Cabinet Parts
02 - Door Parts
03 - Unit Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10297410 | Exterior Door Panel |
|
- | |||||
| 2 | 3-35284-001 | Lock Kit (Replaces: 4356759) |
|
$ 24.42 | |||||
| 3 | 2-35195-002 | Hook Bolt, Lock (Replaces: 4356608) |
|
$ 57.10 | |||||
| 4 | 4356304 | Key |
|
- | |||||
| 5 | 8210430 | Handle |
|
- | |||||
| 6 | 4356306 | Clip, Oblong |
|
$ 7.36 | |||||
| 8 | W10297412 | Interior Door Panel |
|
- | |||||
| 9 | 4356874 | Lamp Socket |
|
- | |||||
| 10 | 3-25693-001 | Reflector, Light (Replaces: 4356500) |
|
$ 15.36 | |||||
| 11 | W10873798 | Light Bulb (Replaces: 4356311) |
|
Immediately | $ 12.53 | ||||
| 12 | 4356704 | Heat Shield |
|
$ 11.85 | |||||
| 13 | W10211568 | Gasket |
|
- | |||||
| 14 | 4356703 | Clip, Gasket |
|
$ 43.62 | |||||
| 15 | W11233072 | Screw (Replaces: 4356609) |
|
Immediately | $ 12.62 | ||||
| 16 | W10620417 | Harness, Wiring (lid) (Replaces: 4356768) |
|
$ 120.34 | |||||
| 17 | WP488787 | Screw (Replaces: 488787) |
|
$ 9.52 | |||||
| 18 | 4356493 | Clip, Spring |
|
- | |||||
| 19 | W10917237 | Switch, Light (Replaces: 4356796) |
|
$ 39.14 | |||||
| 20 | 68001748 | Nameplate |
|
- |
