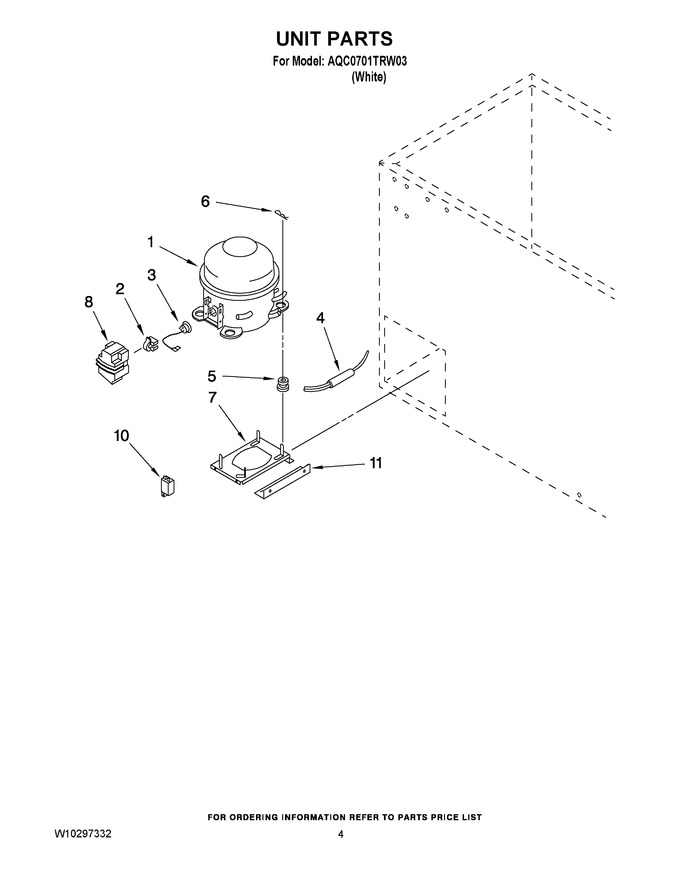

03 - Unit Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4356715		Compressor (includes Items 2, 3, 4, 5, 6 & 8)		Appelez-nous	-
2	4356738		Relay				$ 53.17
3	8210241		Overload				$ 88.68
4	4001		Drier   (Replaces: 4357299)			Immediately	$ 9.64
5	4356335		Compressor, Mounting Grommet		Appelez-nous	-
6	W10202610		Compressor, Hitch Pin		Appelez-nous	-
7	4356590		Compressor Base		Appelez-nous	-
8	8210242		Cover		Appelez-nous	-
10	8210308		Capacitor				$ 94.77
11	3-81556-001		Brace   (Replaces: 4356720)		Appelez-nous	-
NI	N/P		Refrigerant Charge (4.8 Oz. (r-134a))		Appelez-nous	-
