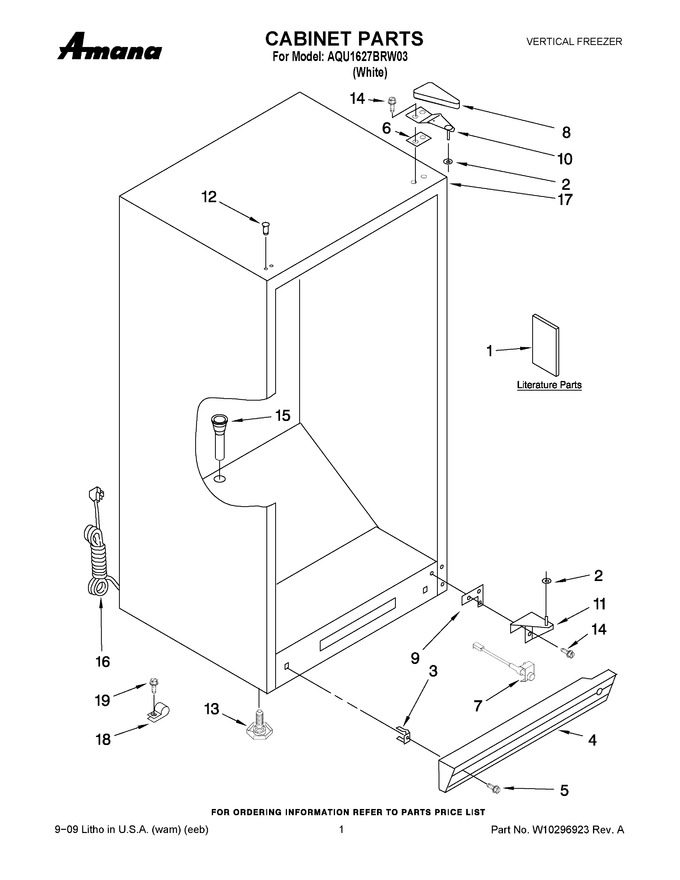

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts


04 - Door Parts


05 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10279026		Owners Manual		Appelez-nous	-
1	8210429		Energy Label/tag		Appelez-nous	-
2	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	1-80247-101		Clip, Grille   (Replaces: 4356803)			Immediately	$ 9.86
4	8210293		Grille				$ 40.70
5	WP489478		Screw   (Replaces: 4357243)				$ 6.98
6	4390489		Shim, Hinge				$ 6.26
7	4390905		Power Light Assembly		Appelez-nous	-
8	4357279		Cover, Hinge				$ 46.56
9	4390489		Shim, Bottom				$ 6.26
10	2-81016-105		Hinge, Top   (Replaces: 8210222)				$ 37.06
11	8210223		Hinge, Bottom		Appelez-nous	-
12	WP2189000		Plug (white)   (Replaces: 4390596)			Immediately	$ 6.66
13	WP3-82710-001		Leg, Leveler   (Replaces: W10177675)			Immediately	$ 18.29
14	WP8204624		Screw   (Replaces: 4356830)				$ 14.99
15	W10164544		Grommet, Drain		Appelez-nous	-
16	8210375		Cord, Power		Appelez-nous	-
17	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
18	W10164544		Clamp, Tube		Appelez-nous	-
19	WP489478		Screw   (Replaces: 4357243)				$ 6.98
