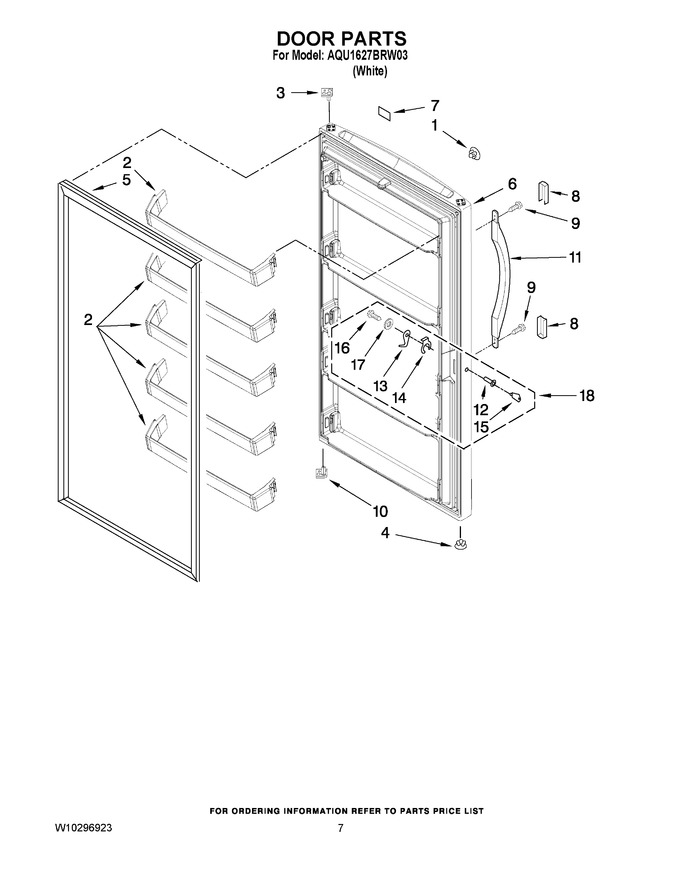

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2189000		Plug, Door   (Replaces: 4390596)			Immediately	$ 6.66
2	8210397		Rail, Door		Appelez-nous	-
3	8210401		Stop, Door (upper)		Appelez-nous	-
4	3-24898-007		Vent Plug   (Replaces: 4357067)				$ 9.72
5	WP4-65151-001		Gasket, Door   (Replaces: 8210340)				$ 303.88
6	68001745		Door Assembly (includes Interior Door Liner)		Appelez-nous	-
7	68001748		Nameplate		Appelez-nous	-
8	12273507		Trim, Handle		Appelez-nous	-
9	WPW10348409		Screw   (Replaces: 3369051)			Immediately	$ 6.98
10	8210400		Stop, Door (lower)		Appelez-nous	-
11	R0131138		Handle		Appelez-nous	-
12	4357145		Lock, Body   (Replaces: 4356839)				$ 23.82
13	68001724		Lock, Bolt		Appelez-nous	-
14	4356842		Spring Clip				$ 12.24
15	WP4356840		Key   (Replaces: 4356840)				$ 9.67
16	WP489478		Screw   (Replaces: 4356843)				$ 6.98
17	4356992		Washer		Appelez-nous	-
18	4357145		Lock Assembly (includes Items 12, 13, 14, 15, 16, & 17)				$ 23.82
