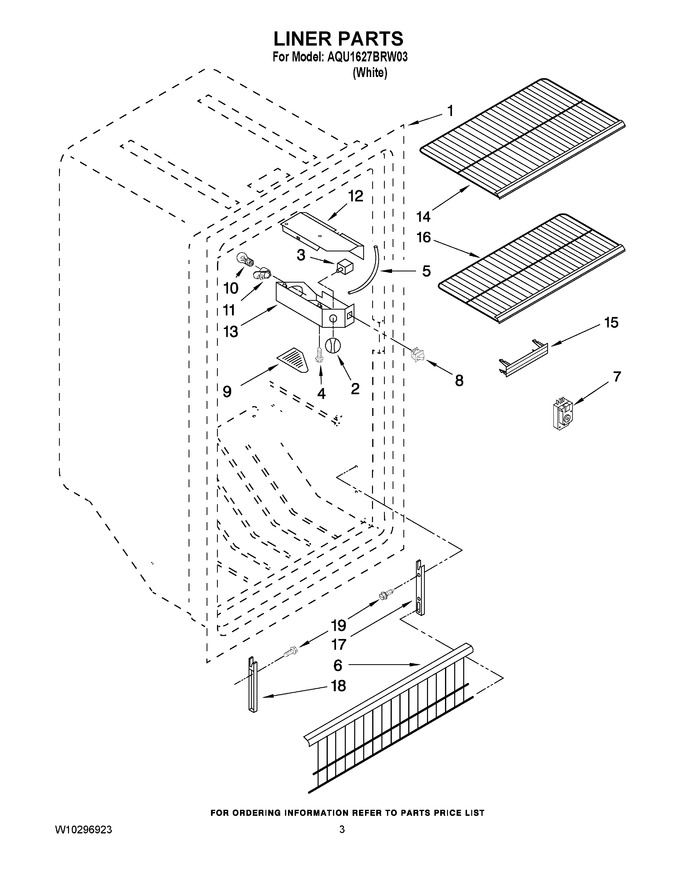

02 - Liner Parts


03 - Unit Parts


04 - Door Parts


05 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	3-82390-001		Knob, Control   (Replaces: 8210348)				$ 25.80
3	WP4-83053-002		Thermostat   (Replaces: 8210344)				$ 220.05
4	WPW10068250		Screw   (Replaces: 4357042)				$ 3.66
5	WP2196003		Tubing, Thermostat   (Replaces: 8210246)				$ 7.16
6	W10296510		Gate		Appelez-nous	-
7	WP3-81329		Defrost Timer   (Replaces: 4357124)			Immediately	$ 170.69
8	W11384469		Switch, Light   (Replaces: 4390513)			Immediately	$ 33.51
9	8210349		Lens Light				$ 33.01
10	W11679940		Bulb, Light   (Replaces: 4390465)			Immediately	$ 10.17
11	WP3-82393-001		Socket, Light   (Replaces: 8210350)				$ 96.62
12	8210351		Shield, Light				$ 42.03
13	8210406		Box, Control		Appelez-nous	-
14	W10297044		Shelf, Upper Wire		Appelez-nous	-
15	WP3-80414-103		Vent Plug   (Replaces: 4357295)				$ 11.57
16	W10297045		Shelf, Lower Wire		Appelez-nous	-
17	4357293		Support, Fence Rh				$ 48.96
18	4356890		Support, Fence Lh		Appelez-nous	-
19	4356891		Screw		Appelez-nous	-
