01 - Main Top


02 - Power Lock


03 - Burner


04 - Lower Body


05 - Lower Oven Door


06 - Upper Oven Pedestal


07 - Lower Oven Control


08 - Lit/optional


09 - Lit/optional

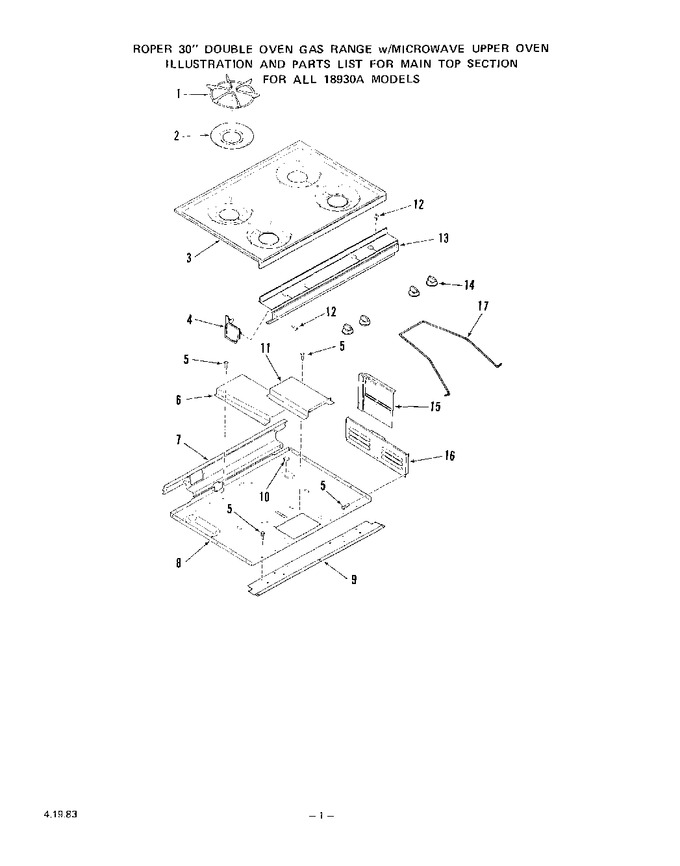

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316786		Top Grate (4 Required)		Appelez-nous	-
2	310385		Spill Bowl (4 Required)		Appelez-nous	-
3	324787		Main Top (chrome)		Appelez-nous	-
3	316789		Main Top (almond)		Appelez-nous	-
3	316790		Main Top (golden Wheat)		Appelez-nous	-
3	316791		Main Top (avocado)		Appelez-nous	-
3	316792		Main Top (coffee)		Appelez-nous	-
3	316788		Main Top (white)		Appelez-nous	-
4	302661		End Cap (right)		Appelez-nous	-
4	302660		End Cap (left)		Appelez-nous	-
5	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
6	321301		Cover-lock Rod		Appelez-nous	-
7	00573829		Rear Support-main Top   (Replaces: 310575)			Immediately	$ 27.48
8	323979		Burner Box Bottom		Appelez-nous	-
9	320841		Front Extension-burner Box Bottom		Appelez-nous	-
10	239831		Plug Button		Appelez-nous	-
11	310418		Cover-latch		Appelez-nous	-
12	295268		Screw 6-32x3/8``		Appelez-nous	-
13	321502		Manifold Panel		Appelez-nous	-
14	321065		Knob-gas Valve (4 Required)		Appelez-nous	-
15	320837		Extension-burner Box Bottom (left)		Appelez-nous	-
15	320839		Extension-burner Box Bottom (right)		Appelez-nous	-
16	324265		Baffle-burner Box Bottom (rt. Or Lt.)		Appelez-nous	-
17	307443		Support Rod-main Top		Appelez-nous	-
