SELECT A DIAGRAM

01 - Main Top


02 - Power Lock


03 - Burner


04 - Lower Body


05 - Lower Oven Door


06 - Upper Oven Pedestal


07 - Lower Oven Control


08 - Lit/optional


09 - Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	315627		Screw 8-32x3/8``		Appelez-nous	-
2	321016		Auxiliary Thermostat		Appelez-nous	-
3	324793		Selector Switch		Appelez-nous	-
4	322953		Mounting Bracket-controls		Appelez-nous	-
5	288557		Push Switch (fluorescent Light)		Appelez-nous	-
6	305928		Push Switch (lock-unlock)		Appelez-nous	-
7	323228		Indicator Light (oven On & Lock)		Appelez-nous	-
8	306333		Push Switch (oven Lamp)		Appelez-nous	-
9	236129		Pal Nut 3/8-27 (2 Ea. For Key`s 5,6,8)		Appelez-nous	-
10	87403		Knurled Nut (3 Req)		Appelez-nous	-
11	325677		Lens-indicator Light		Appelez-nous	-
12	321535		Knob-selector Switch		Appelez-nous	-
13	321534		Knob-thermostat		Appelez-nous	-
14	324880		Bushing-knob		Appelez-nous	-
15	300326		Wire Lead W/resistor (10k,4-5 Watt)		Appelez-nous	-
16	78565		Screw 8-32x3/16``		Appelez-nous	-
17	286628		Screw 10-32x5/16``		Appelez-nous	-
18	323985		Thermostat		Appelez-nous	-
19	230530		Speed Nut 8-32		Appelez-nous	-
20	324719		Clock W/1 Hr. Timer		Appelez-nous	-
21	325882		Gas Valve Switches		Appelez-nous	-
21	109225		Knob-clock (start & Stop Time) (3)		Appelez-nous	-
21	324794		Main		Appelez-nous	-

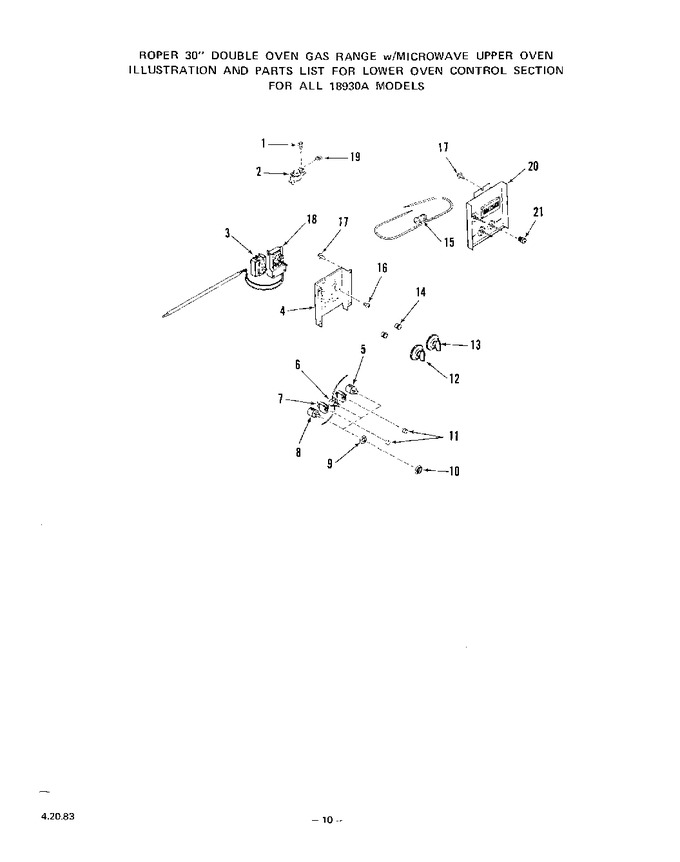

    View Diagram in Separate Window       Print Part List
