SELECT A DIAGRAM

01 - Main Top


02 - Power Lock


03 - Burner


04 - Lower Body


05 - Lower Oven Door


06 - Upper Oven Pedestal


07 - Lower Oven Control


08 - Lit/optional


09 - Lit/optional

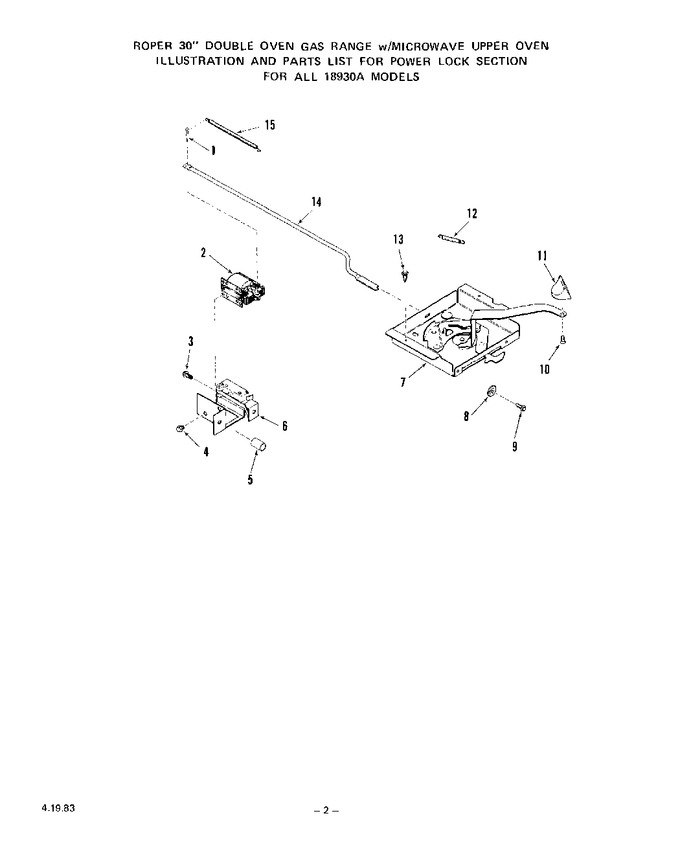

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318089		Cotter Pin		Appelez-nous	-
2	319431		Solenoid Only		Appelez-nous	-
3	295850		Screw 10 - 32 X 7/16``		Appelez-nous	-
4	319433		Mounting Screw		Appelez-nous	-
5	310419		Spacer (2 Required)		Appelez-nous	-
6	319432		Bracket W/switch		Appelez-nous	-
7	324815		Oven Door Lock Asem. (inc. Key 12)		Appelez-nous	-
8	106462		Washer		Appelez-nous	-
9	316365		Screw 10-32x7/16``		Appelez-nous	-
10	313768		Screw 6-32x15/32``		Appelez-nous	-
11	323363		Knob-oven Door Lock Handle		Appelez-nous	-
12	299599		Spring-lock Handle		Appelez-nous	-
13	295849		Screw 10-32x17/32``		Appelez-nous	-
14	310555		Rod-oven Door Lock		Appelez-nous	-
15	299704		Spring-solenoid		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
