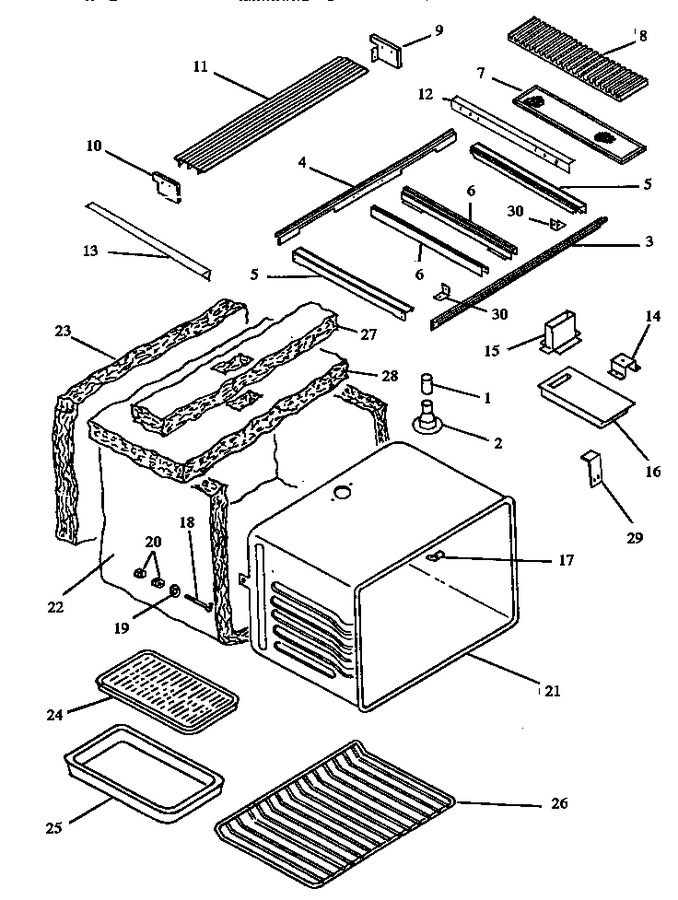

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0060633		Tube, Vent Extension		Appelez-nous	-
2	Y0058526		Smoke Eliminator		Appelez-nous	-
3	0303146		Frame Front, Main Top		Appelez-nous	-
4	0303147		Frame, Rear-electric (wht)		Appelez-nous	-
5	0303149		Frame, Side R.h.		Appelez-nous	-
5	0303148		Frame Side, Lh		Appelez-nous	-
6	0303145		Frame, Center		Appelez-nous	-
7	Y0307363		Filter (17.75``x4.0``x.375``)				$ 16.98
8	Y0058902		Cover, Vent (blk)		Appelez-nous	-
11	0303174		Lo-backrail, Elec-w		Appelez-nous	-
12	Y0305204		Trim, Countertop		Appelez-nous	-
13	Y0305204		Trim, Countertop		Appelez-nous	-
14	Y0300632		Mtg. Bracket, Vent		Appelez-nous	-
15	Y0059431		Flue Box, Rear		Appelez-nous	-
16	Y0300641		Flue Box		Appelez-nous	-
17	Y0307380		Cover, Chip		Appelez-nous	-
18	Y0091536		Hook Bolt		Appelez-nous	-
19	Y0071876		Washer		Appelez-nous	-
20	0041847		Hex Nut No.10-32 Nickel		Appelez-nous	-
21	303915E		Oven Shell		Appelez-nous	-
22	Y0301713		Insulation, Wrapper		Appelez-nous	-
23	0301712		Insulation, Back		Appelez-nous	-
24	4396923		Grid, Broiler (cg)   (Replaces: 304451E)			Immediately	$ 52.04
25	4396923		Pan, Broiler   (Replaces: 11161CG)			Immediately	$ 52.04
26	WP314763J		Rack,oven   (Replaces: Y067810K)				$ 70.11
27	0058319		Insulation, Latch		Appelez-nous	-
28	0301711		Insulation, Top		Appelez-nous	-
29	Y0300943		Bracket, Vent Support		Appelez-nous	-
30	Y0301154		Bracket, Frame Trim		Appelez-nous	-
NI	Y0063351		Capillary Hole Cover		Appelez-nous	-
NI	0309729		Ass`y, Side Trim		Appelez-nous	-
