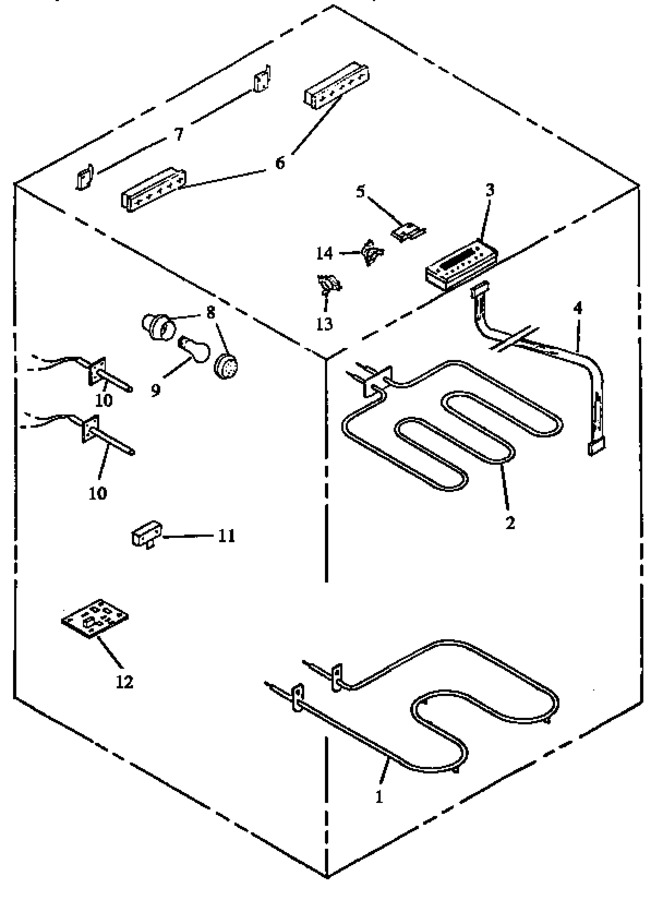

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP77001094		Element, Bake (240v-2500w)   (Replaces: Y0059552)			Immediately	$ 39.58
2	Y0060241		Element, Broil (240v-3000w)		Appelez-nous	-
3	Y0308480		Control, Erc Elec.		Appelez-nous	-
4	Y0308189		Harness, Wire (clock/pcb)		Appelez-nous	-
5	Y0065780		Switch, Clean Circuit				$ 11.77
5	Y0042052		Switch, Clean, Primary Interl		Appelez-nous	-
6	Y0042210		Plug Block Modular Top		Appelez-nous	-
7	Y0054254		Switch, Fan		Appelez-nous	-
8	WP74011278		Assy, Oven Light   (Replaces: 74011278)				$ 101.56
9	Y0042175		Bulb, Light		Appelez-nous	-
10	WPY0314907		Sensor, Temperature   (Replaces: Y0306529)				$ 201.45
11	WP8203546		Terminal Block   (Replaces: Y0306378)			Immediately	$ 27.12
12	Y0301277		Circuit Board, Erc-electric		Appelez-nous	-
13	Y0308416		Switch, Limit Cont.		Appelez-nous	-
14	Y0308417		Control, Fan		Appelez-nous	-
NI	Y0308192		Harness, Wire (pc Brd 23``)		Appelez-nous	-
NI	0306381		Hex Nut No.10-32 Nickel		Appelez-nous	-
NI	Y0300662		Support		Appelez-nous	-
NI	Y0087705		Power Cord (range)		Appelez-nous	-
NI	Y0042123		Element, Contact-module Top		Appelez-nous	-
NI	WPW10245259		Strap, Ground   (Replaces: Y0306379)			Immediately	$ 31.65
