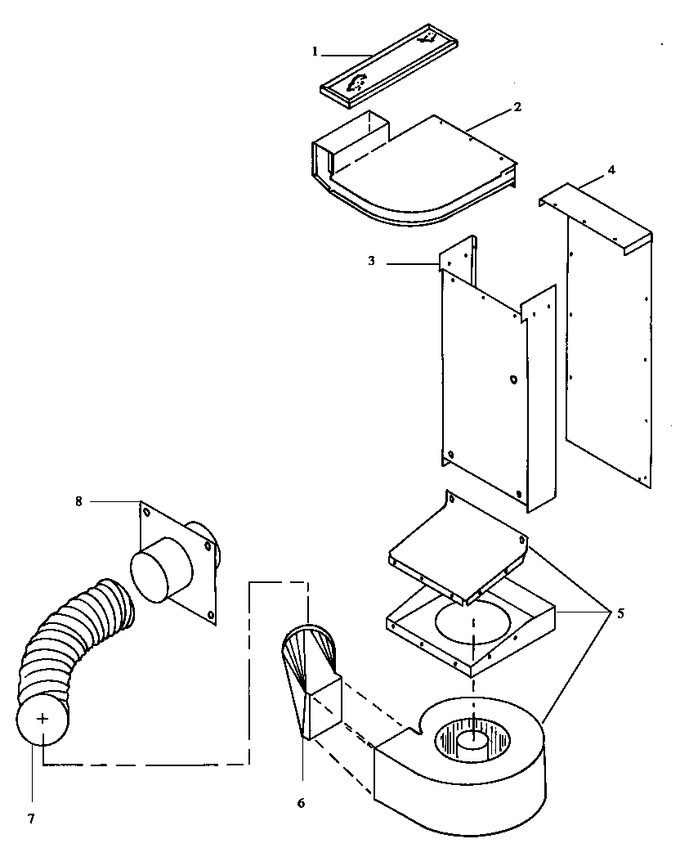

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0307363 | Filter (17.75``x4.0``x.375``) |
|
$ 16.98 | |||||
| 2 | 58576CG | Top, Plenum |
|
- | |||||
| 3 | 0307100 | Plenum, Rear |
|
- | |||||
| 4 | 0307101 | Cover, Rear Panel |
|
- | |||||
| 5 | Y0307500 | Assy, Blower Box |
|
- | |||||
| 6 | Y0307508 | Duct, Blower |
|
- | |||||
| 7 | Y0307945 | Duct, Flex |
|
- | |||||
| 8 | Y0307592 | Thimble, 6`` Duct |
|
- | |||||
| NI | Y0307680 | Clamp, Worm Gear |
|
- | |||||
| NI | D6711804 | Capacitor |
|
- |
