ARH6700E (BOM: P1142686N E) | TransGlobal : Appliance Model Lookup

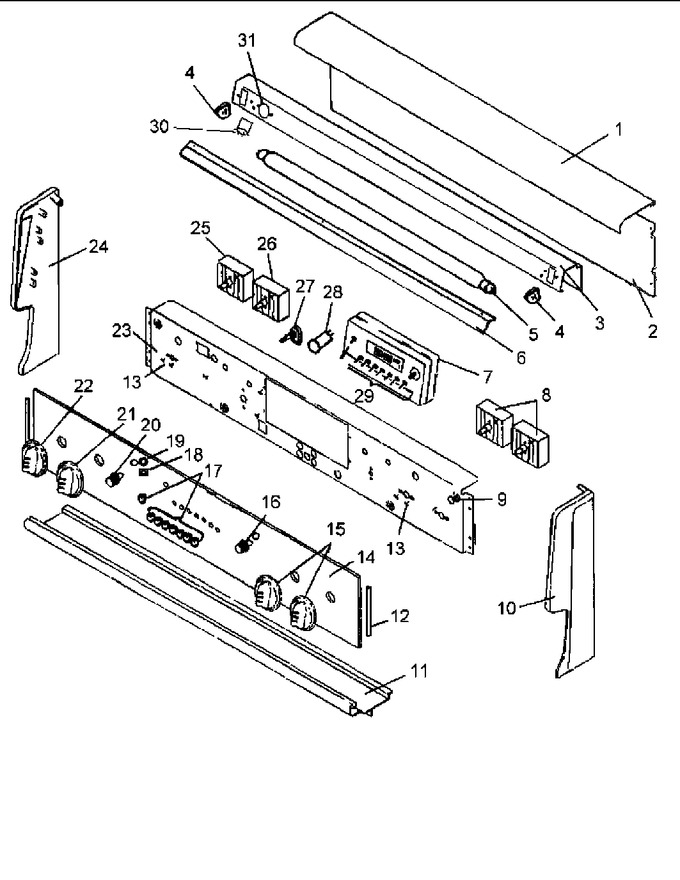

Diagram #	Part Number	Description	Availability	Ships	Price
1	304955B	Trim, Top Backguard (blk)	Appelez-nous	-
2	0309137	Cover, Backguard	Appelez-nous	-
3	307211B	Bracket, Light	Appelez-nous	-
4	Y0304559	Lamp Holder-floures	Appelez-nous	-
5	WPY0067945	Lamp, Flourescent (Replaces: Y0067945)			$ 29.33
6	0304977	Light Diffuser Backguard-clear	Appelez-nous	-
6	314934B	Shield, Light (blk)	Appelez-nous	-
7	Y0309441	Erc 3, Elec. Auto Latch	Appelez-nous	-
8	Y0309399	Switch, Surface El. 10 Pos.	Appelez-nous	-
9	Y0063661	Bumper, Oven Door	Appelez-nous	-
10	304928B	End Cap-bkgd Lt/rt (blk)	Appelez-nous	-
11	314603B	Trim, Lower Bkgd (blk)	Appelez-nous	-
12	0305309	Channel Glass (blk)	Appelez-nous	-
13	WP3400882	Screw, No.8-32 X 3/16 Pph (Replaces: Y0041768)		Immediately	$ 6.47
14	308056B	Glass, Control Panel (blk)	Appelez-nous	-
15	309506B	Knob, Control-10 Position-blk	Appelez-nous	-
16	308956B	Knob, Clock (blk)			$ 4.83
17	308956B	Knob, Clock (blk)			$ 4.83
18	Y0065052	Speednut	Appelez-nous	-
19	0065051	Bezel, Panel Switch	Appelez-nous	-
20	306674B	Knob, Light Switch (blk)	Appelez-nous	-
21	0306233	Knob, Dual Inf Switch (blk)	Appelez-nous	-
22	0306671	Knob, Infinite Switch (blk)	Appelez-nous	-
22	309870B	Knob, Infinite Switch (blk)	Appelez-nous	-
23	Y0309723	Panel, Control	Appelez-nous	-
24	304927B	End Cap-bkgd Lt/rt (blk)	Appelez-nous	-
25	W11121639	Switch, Infinite (Replaces: Y0309862)			$ 149.17
26	0309549	Switch, Dual Infinite (wht)	Appelez-nous	-
27	Y0306673	Switch, Oven Light, Rotary	Appelez-nous	-
28	Y0305660	Light, Indicator (red)	Appelez-nous	-
29	0309888	Pin, Actuator	Appelez-nous	-
30	0071920	Starter, Flourescent	Appelez-nous	-
31	Y0304560	Start Holdr-flour.lmp	Appelez-nous	-
NI	0306589	Support, Bkgd (lh)	Appelez-nous	-
NI	0314604	Flue Cap	Appelez-nous	-
NI	Y0305391	Collar, Starter Socket	Appelez-nous	-
NI	0306590	Support, Bkgd (rh)	Appelez-nous	-
