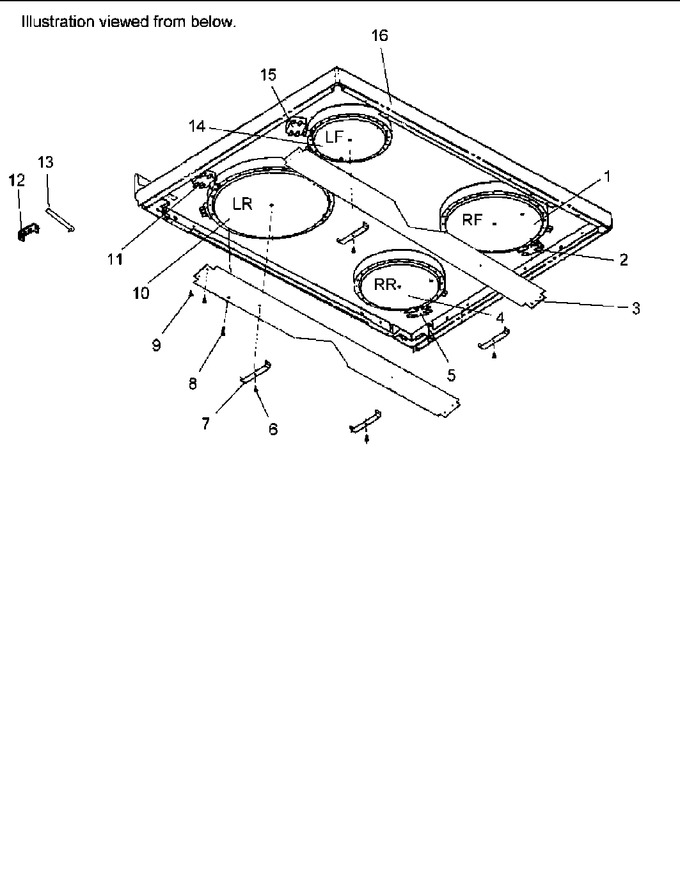

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0307433		Element, Haloring-1800 W		Appelez-nous	-
2	10061003		Limiter, Temp, Large		Appelez-nous	-
3	Y0315354		Brkt, Element		Appelez-nous	-
4	Y0307432		Element, Haloring-1500 W		Appelez-nous	-
5	10061005		Element, Haloring-1500 W		Appelez-nous	-
6	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
7	Y0306683		Spring, Element		Appelez-nous	-
8	0306212		Screw, Shoulder		Appelez-nous	-
9	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65
10	W10823726		Element, Dual Ribbon 1000/2500   (Replaces: Y0314899)				$ 308.80
12	Y0306150		Brkt, Hinge Strap Mtg		Appelez-nous	-
13	0314373		Hinge, Strap		Appelez-nous	-
14	Y0314909		Element, Ribbon (1200 Watts)		Appelez-nous	-
15	10061016		Limiter		Appelez-nous	-
16	315209B		Assy, Maintop & Glass (blk)		Appelez-nous	-
NI	Y0052031		Screw, No.8-32 X3/8 P Trs Hd Lp		Appelez-nous	-
NI	Y0076035		Screw, No.8-18 X 7/8 Pph		Appelez-nous	-
NI	Y0307456		Clamp, Tube (1/2``)		Appelez-nous	-
