Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 Y0314605 Tube, Vent Appelez-nous -
2 Y0058526 Smoke Eliminator Appelez-nous -
3 Y0315022 Cover, Chip Appelez-nous -
4 58788CG Oven Shell (el. W/lt) Appelez-nous -
5 Y0061557 Bracket, Reflector Mounting Appelez-nous -
6 Y0308294 Reflector, Broil Element Appelez-nous -
7 0061556 Bracket, Mounting Appelez-nous -
8 WPY0061732 Element, Broil (240v-3000w)   (Replaces: Y0061732) Special Order $ 158.37

9 WP77001094 Element, Bake (240v-2500w)   (Replaces: Y0059552) In-Stock Immediately $ 39.58

10 4396923 Pan, Broiler (cg)   (Replaces: 314175CG) In-Stock Immediately $ 52.04

11 4396923 Grid, Broiler (cg)   (Replaces: 304451CG) In-Stock Immediately $ 52.04

12 WP314763J Rack,oven   (Replaces: 314763L) Special Order $ 70.11

13 0300973 Insulation, Wrapper Appelez-nous -
14 Y0058852 Bracket, Oven Cavity Appelez-nous -
15 Y0300974 Insulation, Rear Appelez-nous -
NI Y0097822 Rivet, Pop Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

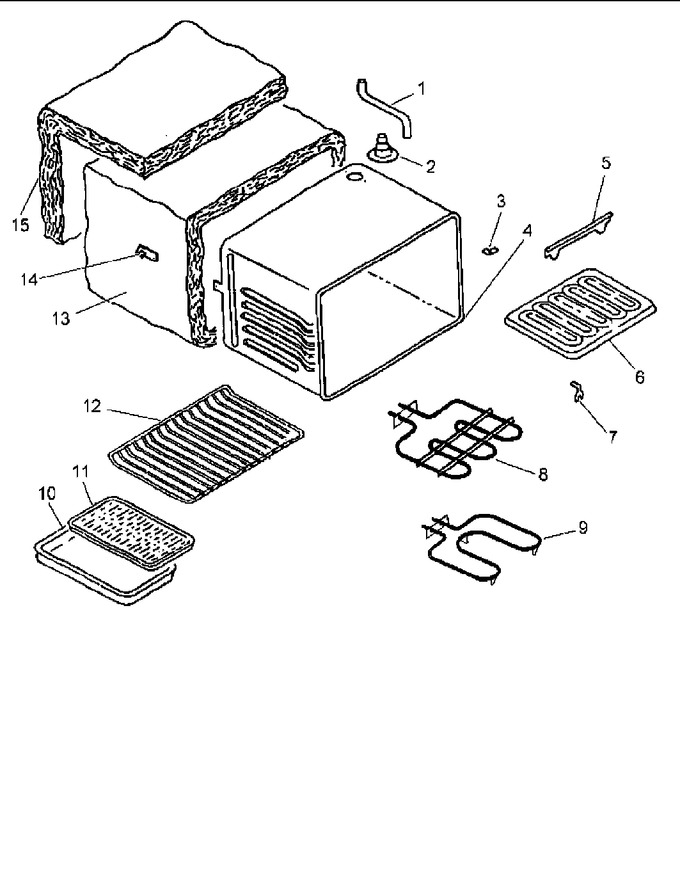

Diagram for ARH6700E (BOM: P1142686N E)
