01 - Cover Sheet

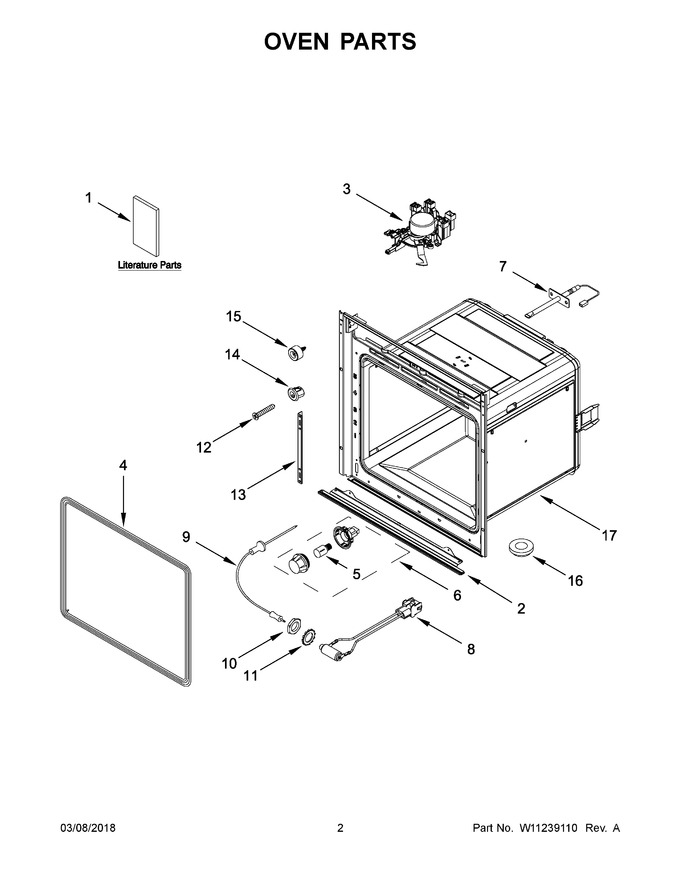

02 - Oven Parts


03 - Control Panel Parts


04 - Oven Door Parts


05 - Internal Oven Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	501971002095		Installation Instructions		Appelez-nous	-
2	W10517979		Trim, Lower			Immediately	$ 59.66
3	W10518305		Latch, Door				$ 285.01
4	W10518387		Gasket, Door				$ 158.97
5	W11791037		Bulb, Halogen 40 Watt   (Replaces: W10518971)				$ 30.96
6	W11237410		Assembly, Bulb Includes Socket And Lens Cover   (Replaces: W10638530)			Immediately	$ 20.28
7	W10518975		Sensor, Temperature			Immediately	$ 202.08
8	W11237411		Socket, Meat Probe With Harness   (Replaces: W10634657)		Appelez-nous	-
9	W10518976		Probe, Meat				$ 49.01
10	W10519007		Nut, Meat Probe 10x1.57		Appelez-nous	-
11	W10519008		Washer, Meat Probe		Appelez-nous	-
12	W10519011		Kit, Oven Screws				$ 39.79
13	W10517968		Hinge, Running Mechanism		Appelez-nous	-
14	W10519010		Bumper, Oven				$ 16.47
15	W10519005		Bumper, Oven Door		Appelez-nous	-
16	W10545973		Foot, Level Oven		Appelez-nous	-
17	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
1A	W10890404		Use And Care Guide		Appelez-nous	-
1B	W11085293		Wiring Diagram		Appelez-nous	-
NI	W11237388		Kit, Power Cord (no Plug)   (Replaces: W10472786)				$ 106.97
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
