01 - Cover Sheet
02 - Oven Parts
03 - Control Panel Parts

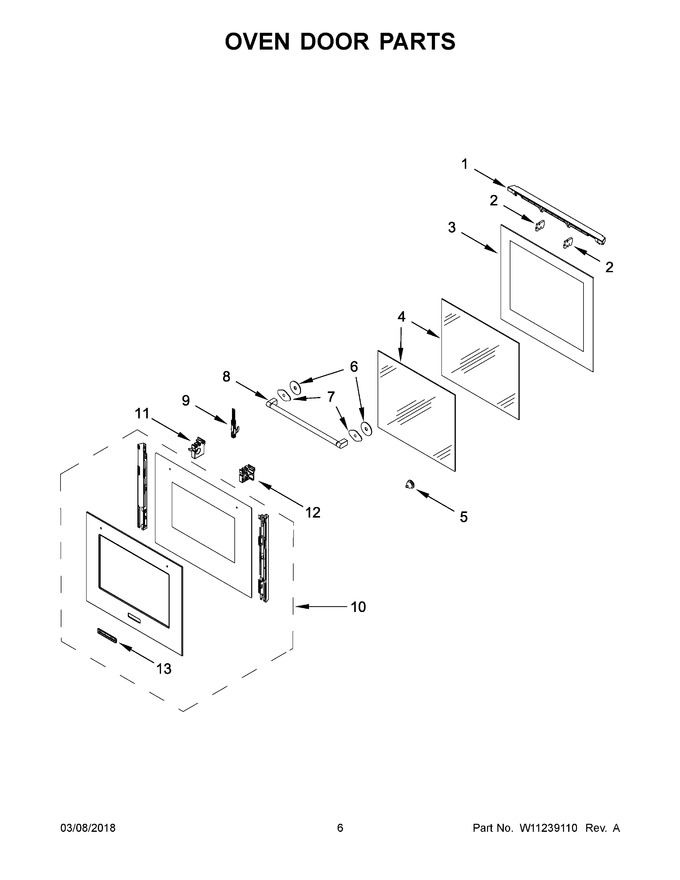

04 - Oven Door Parts
05 - Internal Oven Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10518369 | Vent, Door Trim Top |
|
Immediately | $ 107.69 | ||||
| 2 | W10518307 | Spacer, Door Trim Top |
|
$ 18.83 | |||||
| 3 | W11236916 | Assembly, Inner Door Glass (Replaces: W10750365) |
|
$ 345.42 | |||||
| 4 | W11778507 | Glass, Door Inner (Replaces: W10518376) |
|
- | |||||
| 5 | W10519004 | Spacer, Oven Door Glass |
|
$ 20.03 | |||||
| 6 | W11236907 | Spacer, Door Handle (Replaces: W10410709) |
|
$ 15.63 | |||||
| 7 | W10260705 | Spacer, Rubber |
|
- | |||||
| 8 | W11236906 | Handle, Door (Replaces: W10713236) |
|
$ 280.84 | |||||
| 9 | W11236905 | Hinge, Door (Replaces: W10793417) |
|
$ 144.78 | |||||
| 10 | W11236915 | Assembly, Outer Door (Replaces: W10769636) |
|
$ 830.25 | |||||
| 11 | W10518383 | Support, Oven Door Glass |
|
- | |||||
| 12 | W10518384 | Support, Oven Door Glass |
|
$ 104.06 | |||||
| 13 | W10909682 | Badge (stainless) (Replaces: W10518673) |
|
Immediately | $ 65.31 |
