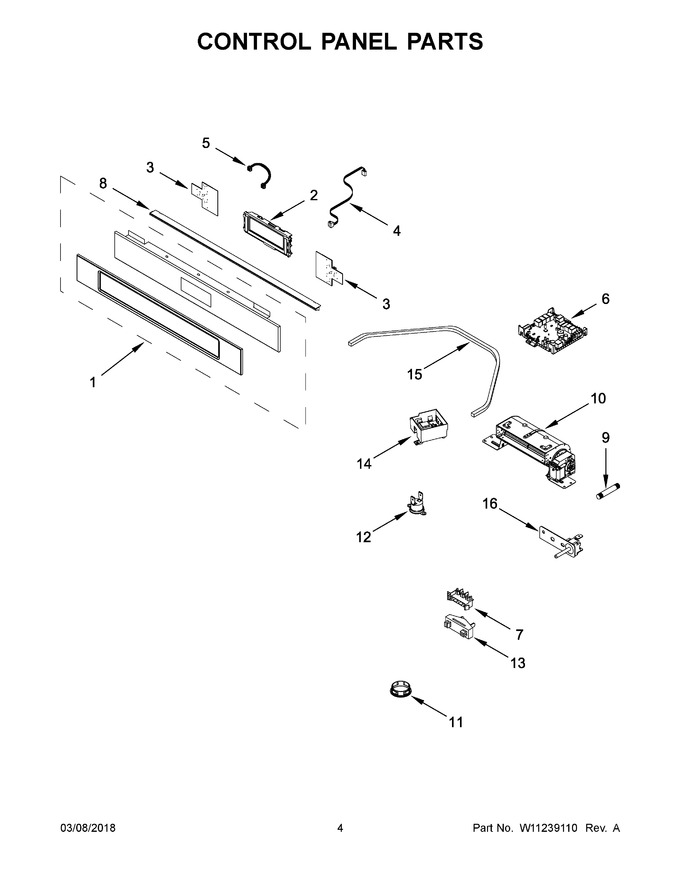

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10886383 | Panel, Control (with Glass) |
|
$ 261.30 | |||||
| 2 | W11237242 | Pcba, Display (Replaces: W11028168) |
|
$ 536.30 | |||||
| 3 | W11231664 | Pcba, Touch Sensor (Replaces: W10777690) |
|
$ 194.26 | |||||
| 4 | W10517879 | Harness, Touch Display |
|
$ 177.30 | |||||
| 5 | W10517885 | Harness, Display To Power Unit |
|
$ 177.30 | |||||
| 6 | W11237409 | Board, Power Antares (Replaces: W11024007) |
|
Immediately | $ 448.15 | ||||
| 7 | W10518946 | Block, Terminal |
|
$ 59.37 | |||||
| 8 | W11236834 | Trim, Vent (Replaces: W10914742) |
|
$ 84.52 | |||||
| 9 | W10518970 | Fuse, 315ma |
|
$ 4.80 | |||||
| 10 | W10517960 | Blower, Cooling Fan |
|
$ 321.17 | |||||
| 11 | W10518942 | Grommet, Cable |
|
- | |||||
| 12 | W10518969 | Thermostat, 155 Celcius |
|
$ 155.41 | |||||
| 13 | W10516534 | Clamp, Cable |
|
- | |||||
| 14 | WPW10518967 | Interface, Meat Probe (Replaces: W10518967) |
|
$ 442.01 | |||||
| 15 | W10519009 | Gasket, Blower Motor |
|
- | |||||
| 16 | W11791034 | Thermostat (Replaces: W10532969) |
|
$ 28.04 |
