Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 327320 Screw 10-16x7/16`` Appelez-nous -
2 337484 Fan Bracket Appelez-nous -
3 108069 Speed Nut 10 - 32 Appelez-nous -
4 337663 Fan Duct Appelez-nous -
5 337664 Lock Cover Appelez-nous -
6 313197 Wire Cover Appelez-nous -
7 78153 Screw 6-32x5/16`` Appelez-nous -
8 331717 Indicator Light Appelez-nous -
9 324608 Infinite Control Appelez-nous -
10 324609 Infinite Control Appelez-nous -
11 WP112432 Screw 10-32x7/16``   (Replaces: 311484) Special Order $ 7.16

13 330818 Left Appelez-nous -
13 330817 Right Appelez-nous -
13 315400 Left Appelez-nous -
13 315398 Right Appelez-nous -
14 69014 Screw 10abx1/2`` Appelez-nous -
15 331705 Lens-indicator Light Appelez-nous -
16 21067 Washer Appelez-nous -
17 336379 Knob-infinite Appelez-nous -
18 334961 Knob-clock Appelez-nous -
19 78565 Screw 8-32x3/16`` Appelez-nous -
20 334649 Oven Light Switch Appelez-nous -
21 336969 Control Panel Appelez-nous -
22 337365 D97570 Appelez-nous -
22 334898 D97571 Appelez-nous -
23 337632 D97571 Appelez-nous -
23 337088 D97570 Appelez-nous -
24 338234 Control Cover Appelez-nous -
25 334955 Spacer Appelez-nous -
26 335558 Fan Appelez-nous -
27 WB27X425 D97571   (Replaces: 337633) Appelez-nous -
27 337672 D97570 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

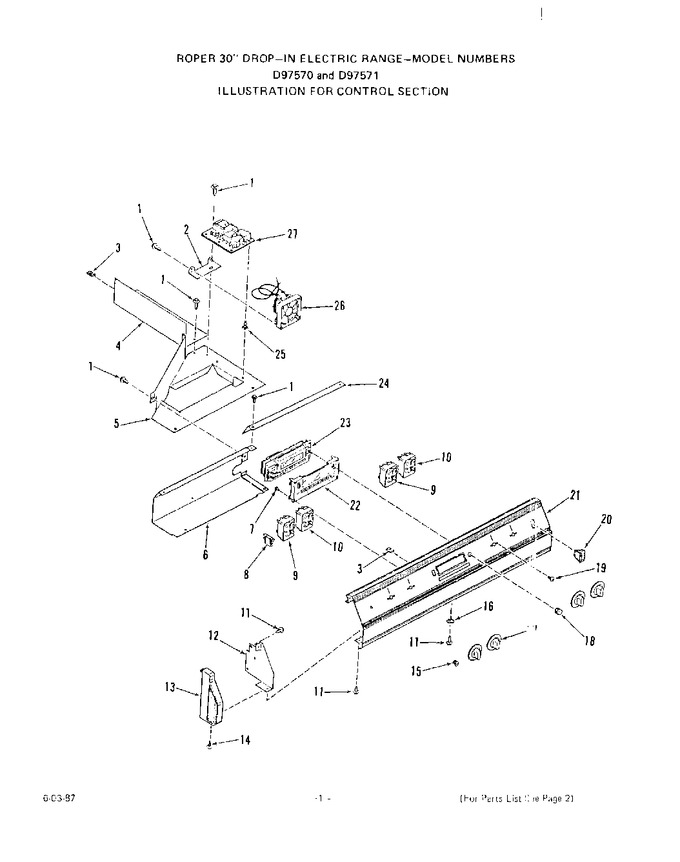

Diagram for D9757^1
