SELECT A DIAGRAM

01 - Control

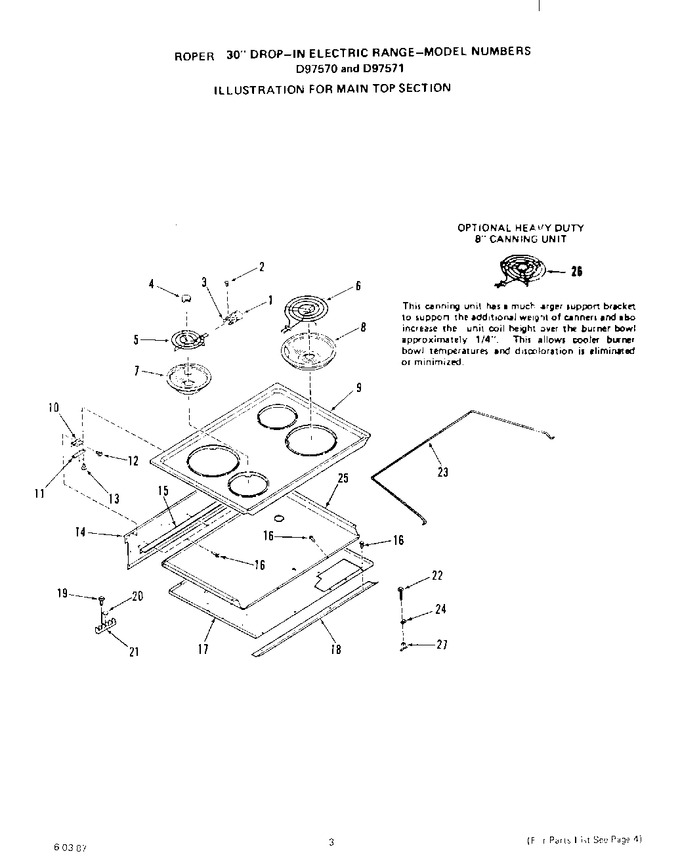

02 - Main Top , Lit/optional 8`` Canning


03 - Body


04 - Power Lock


05 - Oven Door


06 - Wire Harnesses And Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	330031		Terminal Block W/wires   (Replaces: 318960)			Immediately	$ 14.48
2	299632		Screw 7-32x5/16``		Appelez-nous	-
3	318872		Terminal Block Clip		Appelez-nous	-
4	319704		Medallion		Appelez-nous	-
5	PS15-4BK		Surface Element 6``   (Replaces: 325510)			Immediately	$ 35.96
6	PS26-4BK		Surface Element 8``   (Replaces: 325506)			Immediately	$ 40.46
7	WPW10196406		Burner Bowl 6``   (Replaces: 296481)			Immediately	$ 12.05
8	WPW10196405		Burner Bowl 8``   (Replaces: 304969)			Immediately	$ 15.56
9	313028		Almond		Appelez-nous	-
9	330884		Chrome		Appelez-nous	-
9	307202		White		Appelez-nous	-
10	315568		Main Top Hinge		Appelez-nous	-
11	315782		Hinge Mounting Bracket				$ 222.63
12	286628		Screw 10-32x5/16``		Appelez-nous	-
13	293121		Screw 6-32x1/4``		Appelez-nous	-
14	333020		Cover-upper Wire		Appelez-nous	-
15	333022		Rear Wire Shield		Appelez-nous	-
16	327320		Screw		Appelez-nous	-
17	336097		Burner Box Bottom		Appelez-nous	-
18	333610		Extension-burner Box		Appelez-nous	-
19	313190		Screw 10-32x1``		Appelez-nous	-
20	97816		Hex Nut		Appelez-nous	-
21	290105		Junction Block		Appelez-nous	-
22	323296		Screw 10-32 X 2``		Appelez-nous	-
23	336079		Main Top Support Rod		Appelez-nous	-
24	106885		Clip		Appelez-nous	-
25	333018		Top-burner Box		Appelez-nous	-
26	WPY04100165		208 Volt (optional)   (Replaces: 326787)			Immediately	$ 50.62
26	326786		240 Volt		Appelez-nous	-
27	297007		Spacer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
