SELECT A DIAGRAM

01 - Control


02 - Main Top , Lit/optional 8`` Canning


03 - Body

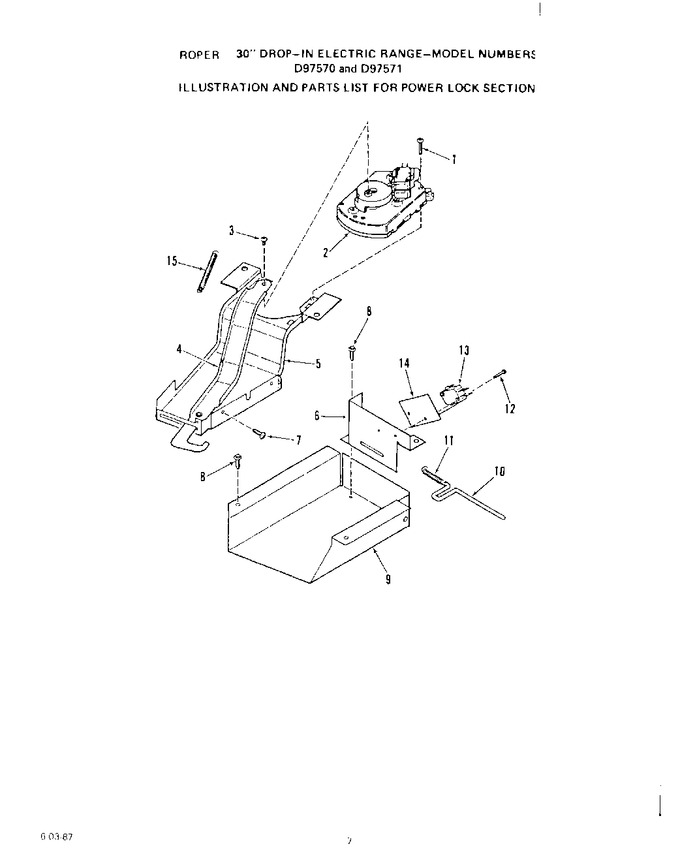

04 - Power Lock


05 - Oven Door


06 - Wire Harnesses And Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	103436		Screw 8 - 32 X 850		Appelez-nous	-
2	336467		Lock Motor Asm		Appelez-nous	-
3	232183		Screw 8-32x3/8``		Appelez-nous	-
4	337971		Lock Lever Asm		Appelez-nous	-
5	337937		Door Lock Plate		Appelez-nous	-
6	337752		Door Switch Bracket		Appelez-nous	-
7	316849		Screw-10-32x1/2``		Appelez-nous	-
8	327320		Screw 10-16x7/16``		Appelez-nous	-
9	337485		Lock Box		Appelez-nous	-
10	337771		Switch Actuator Pin		Appelez-nous	-
11	337834		Spring		Appelez-nous	-
12	328956		Screw 4-40x11/16``		Appelez-nous	-
13	334078		Micro Switch		Appelez-nous	-
14	329171		Insulator		Appelez-nous	-
15	337933		Lock Spring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
