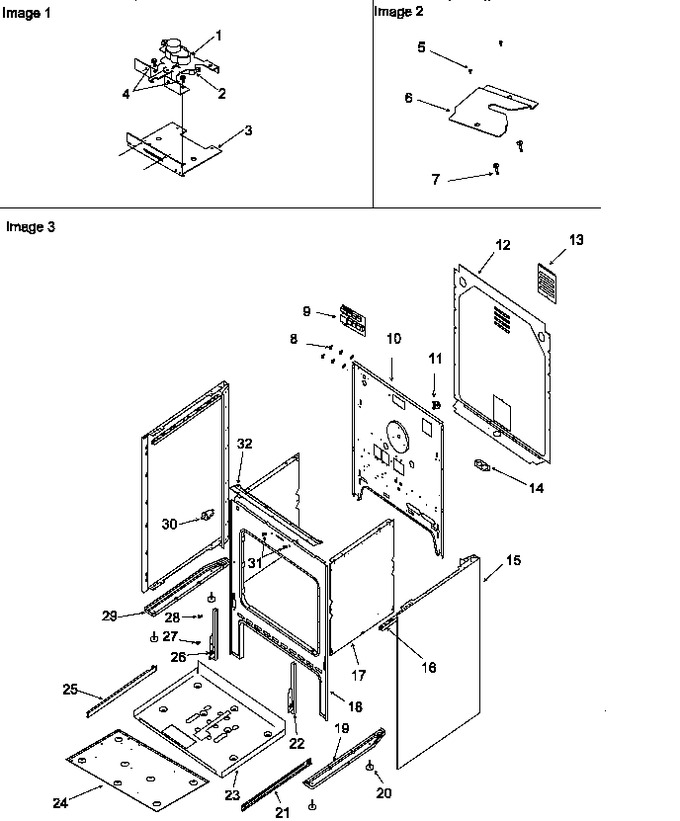

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0309430		Latch, Oven Door		Appelez-nous	-
2	Y0314277		Switch, Door Latch		Appelez-nous	-
3	Y0316243		Brkt, Latch Mtg		Appelez-nous	-
4	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
5	Y0041813		Screw Cabinet Trim		Appelez-nous	-
6	Y0315560		Brkt, Range Anti-tip		Appelez-nous	-
7	Y0301555		Anchor, Plastic		Appelez-nous	-
8	Y0306900		Support-circuit Board		Appelez-nous	-
9	Y0309305		Circuit Board, Erc				$ 209.64
10	Y0316960		Retainer, Rear (elec)		Appelez-nous	-
11	Y0053584		Switch, Hi Limit		Appelez-nous	-
12	Y0307342		Cover, Rear		Appelez-nous	-
13	Y0058435		Access Plate, Rear		Appelez-nous	-
14	0058311		Plate, Main Inlet Wire		Appelez-nous	-
15	317036W		Panel, Side (wht)		Appelez-nous	-
16	Y0304019		Channel, Broil Burner		Appelez-nous	-
18	Y00000000		See Note See Note Front Frame,tall-s/c W/light		Appelez-nous	-
19	Y0314883		Leveling Leg\bottom Brace Rt		Appelez-nous	-
20	314187B		Leg,leveling Xxx		Appelez-nous	-
21	0314663		Track, Storage Dwr Rh		Appelez-nous	-
22	31715202		Hinge, Oven Door (rt)		Appelez-nous	-
23	Y0309061		Retainer, Insulation (bottom)		Appelez-nous	-
25	Y0314662		Track, Storage Dwr Lh		Appelez-nous	-
26	31715201		Hinge, Oven Door (lt)		Appelez-nous	-
27	WP4159193		Screw, No.10-32x 5/16 Pan Ph H   (Replaces: Y0317065)				$ 4.29
28	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: Y0317066)			Immediately	$ 6.85
29	Y0314882		Leveling Leg\bottom Brace Lt		Appelez-nous	-
30	Y0305797		Switch, Oven Door		Appelez-nous	-
31	Y0305004		Screw, No.8-18 X .500 Ab (blk)		Appelez-nous	-
32	Y0314891		Brkt, Maintop (painted)		Appelez-nous	-
NI	Y0314570		Harness, Wiring		Appelez-nous	-
NI	Y0316004		Screw, No.10-32x1/2 (pan Ph Hd)		Appelez-nous	-
NI	Y0091599		Screw, No.10-32x1/2 (ph Taptite)		Appelez-nous	-
NI	31715801		Wire, Insulation Retainer 100``		Appelez-nous	-
NI	31730101		Clip, Tinnerman		Appelez-nous	-
NI	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65

    View Diagram in Separate Window       Print Part List
