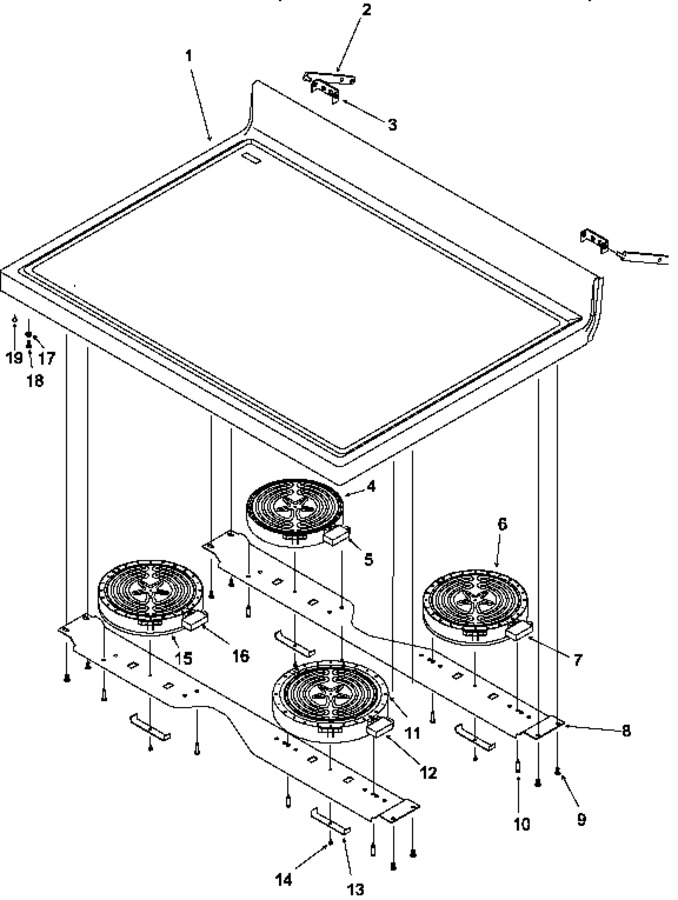

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316738WW		Assy, Top & Glass (white-white		Appelez-nous	-
2	Y0315931		Pin, Hinge		Appelez-nous	-
3	Y0306150		Brkt, Hinge Strap Mtg		Appelez-nous	-
4	Y0307433		Element, Haloring-1800 W		Appelez-nous	-
5	10061003		Limiter, Temp, Large		Appelez-nous	-
6	Y0314909		Element, Ribbon (1200 Watts)		Appelez-nous	-
7	0316686		Limiter (1200 Watts)		Appelez-nous	-
8	Y0316248		Brkt, Element		Appelez-nous	-
9	Y0052031		Screw, No.8-32 X3/8 P Trs Hd Lp		Appelez-nous	-
10	Y0316569		Screw, Shoulder		Appelez-nous	-
11	W10823726		Element, Dual Ribbon 1000/2500   (Replaces: Y0314899)				$ 308.80
12	Y00000000		See Note See Note Limiter Dual, Not Available Separately		Appelez-nous	-
13	Y0306683		Spring, Element		Appelez-nous	-
14	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
15	Y0307432		Element, Haloring-1500 W		Appelez-nous	-
16	10061005		Element, Haloring-1500 W		Appelez-nous	-
18	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65
19	31717001		Spacer, Snap-in		Appelez-nous	-
NI	Y0076035		Screw, No.8-18 X 7/8 Pph		Appelez-nous	-
NI	Y0307456		Clamp, Tube (1/2``)		Appelez-nous	-
