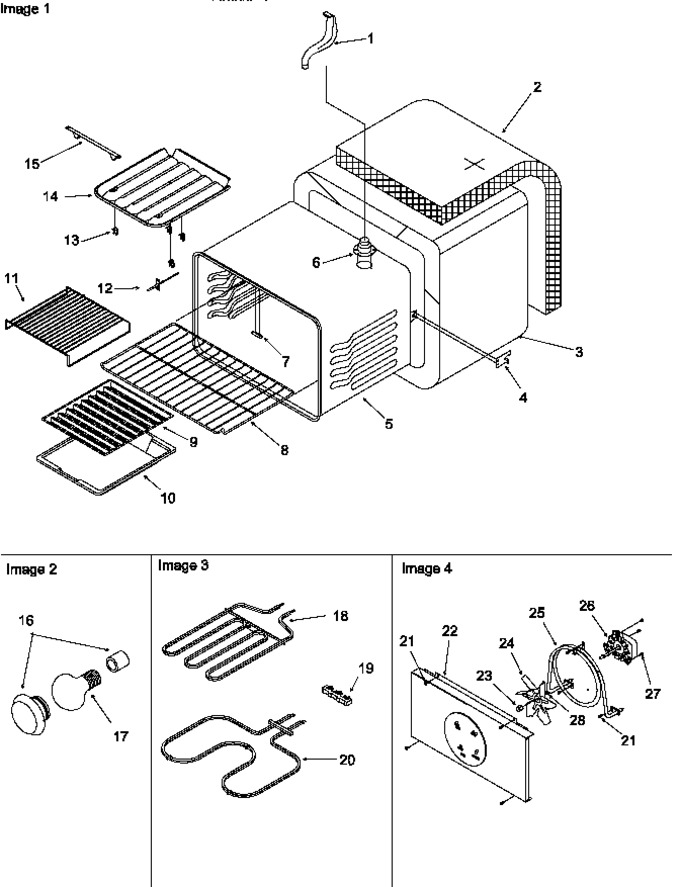

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0316995		Tube, Vent		Appelez-nous	-
2	Y0316949		Insulation, Rear		Appelez-nous	-
3	Y0316948		Insulation, Wrapper		Appelez-nous	-
4	Y0058852		Bracket, Oven Cavity		Appelez-nous	-
5	316964CG		Oven, Cavity (enamelled)		Appelez-nous	-
6	Y0316952		Smoke Eliminator, Short		Appelez-nous	-
7	Y0315022		Cover, Chip		Appelez-nous	-
8	309988J		Rack, Oven		Appelez-nous	-
9	4396923		Grid, Broiler (cg)   (Replaces: 304451CG)			Immediately	$ 52.04
10	4396923		Pan, Broiler (cg)   (Replaces: 314175CG)			Immediately	$ 52.04
11	Y0306531		Rack, Broiler		Appelez-nous	-
12	WPY0314907		Sensor, Temperature   (Replaces: Y0314907)				$ 201.45
13	0315402		Bracket, Mounting		Appelez-nous	-
14	Y0315403		Reflector, Broil Element		Appelez-nous	-
15	Y0061557		Bracket, Reflector Mounting		Appelez-nous	-
16	WP74011278		Assy, Oven Light   (Replaces: Y0314842)				$ 101.56
17	Y0042175		Bulb, Light		Appelez-nous	-
18	WPY0061732		Element, Broil (240v-3000w)   (Replaces: Y0061732)				$ 158.37
19	WP8203546		Terminal Block   (Replaces: Y0306378)			Immediately	$ 27.12
20	WP77001094		Element, Bake (240v-2500w)   (Replaces: Y0059552)			Immediately	$ 39.58
21	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
22	309774CG		Cover, Fan (enameled)		Appelez-nous	-
23	0307037		Nut, Lt Hand Thread		Appelez-nous	-
24	Y0307036		Blade, Fan		Appelez-nous	-
25	Y0305245		Element, Conv Oven(240v-2200w)		Appelez-nous	-
26	Y0305246		Assy, Conv. Fan & Blade		Appelez-nous	-
27	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
28	0307038		Washer (zn)		Appelez-nous	-
NI	WPW10245259		Strap, Ground   (Replaces: Y0306379)			Immediately	$ 31.65
NI	0306381		Hex Nut No.10-32 Nickel		Appelez-nous	-
NI	Y0097822		Rivet, Pop		Appelez-nous	-
