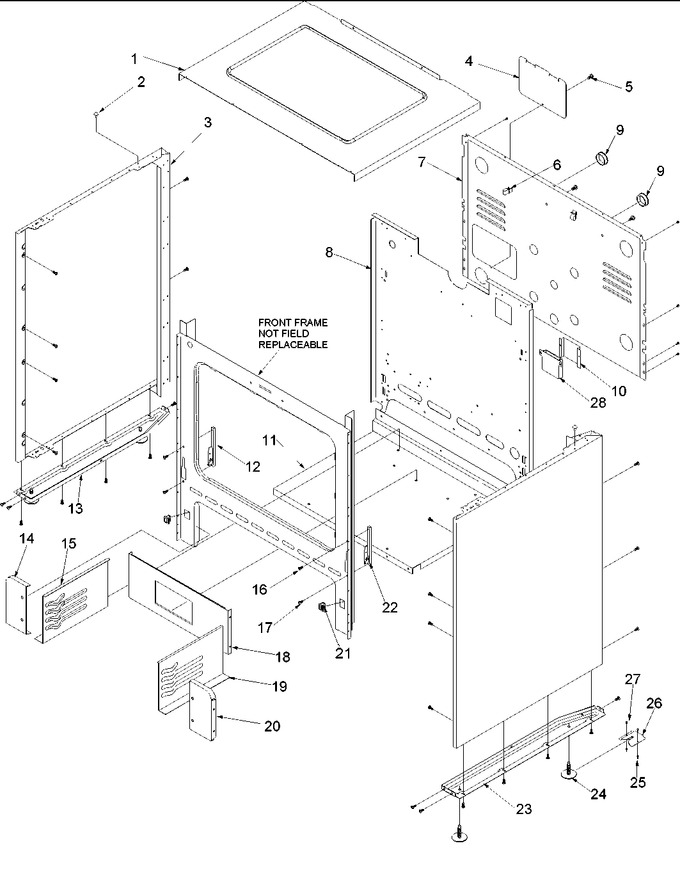

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31821002B		Box, Burner		Appelez-nous	-
2	31717001		Spacer, Snap-in		Appelez-nous	-
3	31825104W		Panel, Side (wht)		Appelez-nous	-
4	31800001		Plate, Access		Appelez-nous	-
5	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
6	Y0091587		Cable, Clip Esm		Appelez-nous	-
7	31830901		Cover, Rear Nsc Gas		Appelez-nous	-
8	31825201		Retainer, Rear Insulation		Appelez-nous	-
9	308655B		Bushing, Snap (blk)		Appelez-nous	-
10	31838401		Cover, Spark Module		Appelez-nous	-
11	31825301		Bottom, Broil Chamber		Appelez-nous	-
12	31715201		Hinge, Oven Door (lt)		Appelez-nous	-
13	Y0314882		Leveling Leg\bottom Brace Lt		Appelez-nous	-
14	31831704CG		Shield, Side Broil Lh		Appelez-nous	-
15	31831504CG		Side, Broil Chamber L.h.		Appelez-nous	-
16	WP4159193		Screw, No.10-32 X 5/16 Pan Ph H   (Replaces: 31750521)				$ 4.29
17	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: 31750507)			Immediately	$ 6.85
18	31839301		Shield, Burner		Appelez-nous	-
19	31831503CG		Side, Broil Chamber R.h.		Appelez-nous	-
20	31831703CG		Shield, Side Broil Rh		Appelez-nous	-
21	31844001		Door Catch, W/catch Spring		Appelez-nous	-
22	Y0317068		Kit, Door Hinge(rh-ss)		Appelez-nous	-
23	Y0314883		Leveling Leg\bottom Brace Rt		Appelez-nous	-
24	314187B		Leg,leveling Xxx		Appelez-nous	-
25	Y0301555		Anchor, Plastic		Appelez-nous	-
26	Y0315560		Brkt, Range Anti-tip		Appelez-nous	-
27	31750412		Screw, No.8-18x5/8 P Rd Hd (blk)		Appelez-nous	-
28	31829401		Module, Spark 2+1				$ 174.71
NI	31846701		Harness, Power		Appelez-nous	-
NI	31846801		Harness, Wire		Appelez-nous	-
NI	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
NI	31750706		Screw, No.8 X .375 Wafer Hd(blk)		Appelez-nous	-
NI	31855601		Bracket, Frt Burner Support		Appelez-nous	-
NI	Y0316652		Assy, Anti-tip Pack		Appelez-nous	-
