01 - Cabinet


02 - Cavity


03 - Main Top And Backguard


04 - Oven Door And Broiler Door

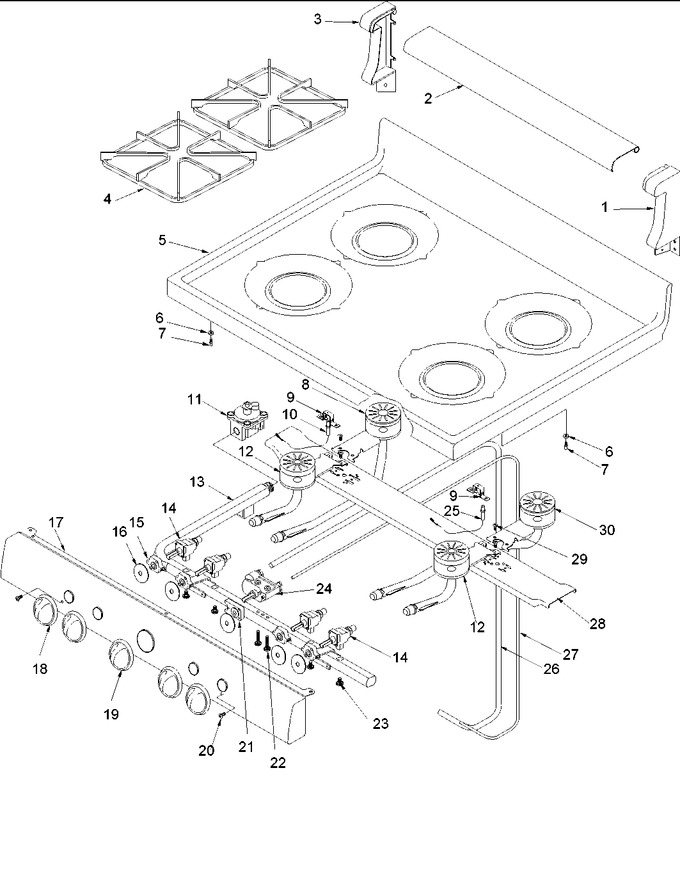

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31855701B		Endcap, Low Backguard R.h.		Appelez-nous	-
2	31839602B		Top, Bkgrd Nsc Gas		Appelez-nous	-
3	31855702B		Endcap, Low Backguard L.h.		Appelez-nous	-
4	31828901B		Grate, Wire		Appelez-nous	-
5	308919W		Maintop (white)		Appelez-nous	-
6	Y0062445		Spacer, Nylon (.14``)		Appelez-nous	-
7	31750709		Screw, Stud		Appelez-nous	-
8	31828702		Burner, L. Rear		Appelez-nous	-
9	31842801		Strap-grnd, Spk Ign.		Appelez-nous	-
10	31829201		Ignitor, Spark,top 48``		Appelez-nous	-
11	31829701		Regulator, Pressure		Appelez-nous	-
12	31828601		Burner, Front		Appelez-nous	-
13	31826701		Manifold Pipe-painted		Appelez-nous	-
14	31837801		Valve, 90 Degree Max.		Appelez-nous	-
15	31837701		Switch, Spark Valve (h-w)		Appelez-nous	-
16	Y0314316		Shield, Switch		Appelez-nous	-
17	31820801B		Panel, Manifold (w/o Light)		Appelez-nous	-
18	31760419B		Knob, Top Burner (maxi Spark)		Appelez-nous	-
19	31832201B		Knob, T`stat M/c		Appelez-nous	-
20	31750719		Screw, No.8-18 X .500 Ab (blk)		Appelez-nous	-
21	31837601		Switch, Spark Therm (h-w)		Appelez-nous	-
22	31750720		Bolt, T`stat Mtg (h/w)		Appelez-nous	-
23	31750703		Screw, Valve (blk)		Appelez-nous	-
24	31829001		T`stat, Spark (h/w)		Appelez-nous	-
25	31829202		Ignitor, Spark (top Burner-32		Appelez-nous	-
26	31826801		Tubing,t-stat To Valve		Appelez-nous	-
27	31826901		Tubing, Oven Pilot 3/16`` X 53``		Appelez-nous	-
28	31830701		Support, Top Burner		Appelez-nous	-
29	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
30	31828701		Burner, R Rear		Appelez-nous	-
NI	Y0067881		Sealant, Pipe Joint		Appelez-nous	-
NI	31750409		Screw, No.8-18 X 1/4 Ptrshd(blk)		Appelez-nous	-
NI	WP4159193		Screw, No.10-32 X 5/16 Pan Ph H   (Replaces: 31750521)				$ 4.29
NI	31750403		Screw, No.8-18 X 1/2 Hex Wsh Hd		Appelez-nous	-
NI	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
NI	Y07727500		Nut, Compression 3/16``		Appelez-nous	-
NI	Y07727400		Ferrule, Compression 3/16``		Appelez-nous	-
NI	31830001		Harness, Spark Switch		Appelez-nous	-
NI	Y0077688		3/8`` Loxit Nut		Appelez-nous	-
