SELECT A DIAGRAM

01 - Cabinet


02 - Cavity


03 - Main Top And Backguard

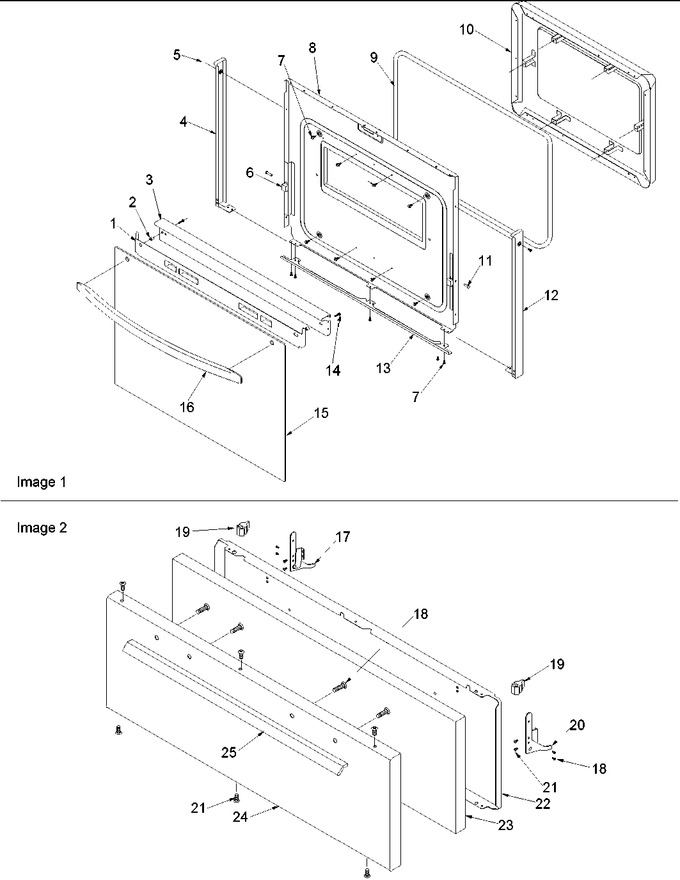

04 - Oven Door And Broiler Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31833201		Assy, Glass Heat Shield		Appelez-nous	-
2	309461B		Bushing, Handle (blk)		Appelez-nous	-
3	31782102B		Trim, Door Top		Appelez-nous	-
4	309523B		End Cap, Door (lt-blk)		Appelez-nous	-
5	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
6	Y0309627		Bumper, Rubber		Appelez-nous	-
7	31750706		Screw, No.8 X .375 Wafer Hd(blk)		Appelez-nous	-
8	317011CG		Backer, Door (enameled)		Appelez-nous	-
9	31715902		Gasket, Oven Door (67``)				$ 13.97
10	314692CG		Oven Door Pad W/o Window		Appelez-nous	-
11	Y0302648		Rivet, Pop		Appelez-nous	-
12	309522B		End Cap, Door (rt-blk)		Appelez-nous	-
13	309460B		Support, Glass (blk)		Appelez-nous	-
14	31750518		Screw, No.10-32 X 1.250`` Pan Hd		Appelez-nous	-
15	316237B		Glass, Oven Dr W/o Window		Appelez-nous	-
16	31689501B		Handle, Oven Door (blk)		Appelez-nous	-
17	31828102		Hinge, Low Broil Door L.h.		Appelez-nous	-
18	31750509		Screw, No.10-24x1/2 (ph Trus Hd)		Appelez-nous	-
19	WP71002097		Strike, Door   (Replaces: 31846001)				$ 11.12
20	31828101		Hinge, Low Broil Door R.h.		Appelez-nous	-
21	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
22	31831302CG		Liner, Door Low Broil		Appelez-nous	-
23	31845401		Insulation, Broil Door		Appelez-nous	-
24	31831203W		Door, Low Broil		Appelez-nous	-
25	31819007W		Handle, Visor		Appelez-nous	-
NI	0062614		Insulation,door-sub Backer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
