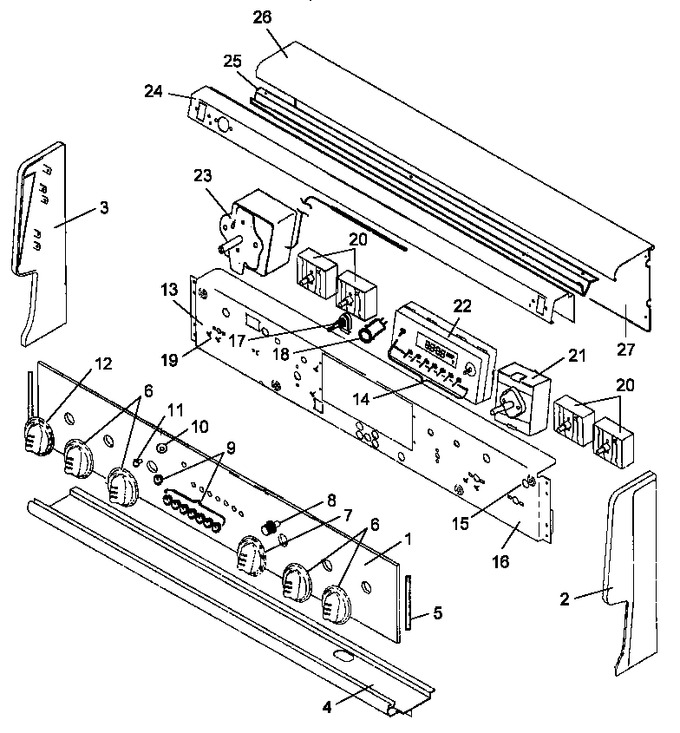

01 - Backguard Assy


02 - Cabinet Assy


03 - Electrical Components


04 - Main Top And Oven Assy


05 - Oven Door Assy


06 - Storage Drawer Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309459B		Glass, Backguard (blk)		Appelez-nous	-
2	304932B		End Cap, R.h.		Appelez-nous	-
3	304931B		End Cap, L.h.		Appelez-nous	-
4	306286B		Trim,lwr Backguard		Appelez-nous	-
5	0059768		Channel, Glass (black)		Appelez-nous	-
6	309921B		Knob, Infin. Switch		Appelez-nous	-
7	309922B		Knob, Selector		Appelez-nous	-
8	308955B		Knob, Clock		Appelez-nous	-
12	309923B		Knob, Thermostat - Black		Appelez-nous	-
13	Y0306546		Panel, Cont.bkgd		Appelez-nous	-
16	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47
18	Y0071820		Indicator Light		Appelez-nous	-
19	Y0041778		Screw 6-32x3/16 Slo Cook Sw		Appelez-nous	-
20	W11121639		Switch, Infinite   (Replaces: Y0309862)				$ 149.17
21	Y0306937		Switch, Selector 5 Pos.		Appelez-nous	-
22	0306288		Clock, Analog (blk)		Appelez-nous	-
23	Y0063416		Thermostat		Appelez-nous	-
26	305007B		Top Trim Backguard		Appelez-nous	-
27	0305447		Cover,backguard		Appelez-nous	-
NI	0306590		Support, Bkgd (rh)		Appelez-nous	-
NI	0306589		Support, Bkgd (lh)		Appelez-nous	-
NI	Y0072808		Connector, Wire		Appelez-nous	-
NI	Y0305443		Bracket,backgrd Endcap		Appelez-nous	-
