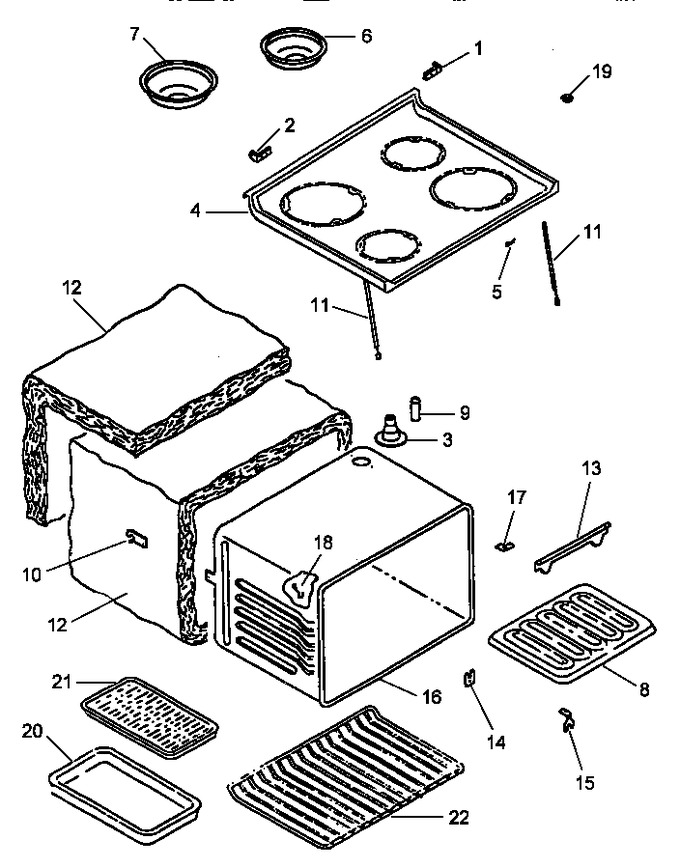

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0306150 | Brkt, Hinge Strap Mtg |
|
- | |||||
| 2 | Y0306150 | Brkt, Hinge Strap Mtg |
|
- | |||||
| 3 | Y0058526 | Smoke Eliminator |
|
- | |||||
| 4 | R0710286 | Maintop & Brkt Kit |
|
- | |||||
| 4 | R0710287 | Maintop & Brkt Kit |
|
- | |||||
| 5 | 0071668 | Pin, Support Rod |
|
- | |||||
| 6 | W10290353RW | Burner, Bowl 6`` (black) (Replaces: 308648B) |
|
Immediately | $ 19.27 | ||||
| 7 | WPW10290350 | Bowl, Burner 8`` (black) (Replaces: 308649B) |
|
Immediately | $ 15.25 | ||||
| 9 | 0063336 | Tube, Vent Ext. |
|
- | |||||
| 10 | Y0058852 | Bracket, Oven Cavity |
|
- | |||||
| 11 | Y0304115 | Support, Maintop |
|
- | |||||
| 12 | Y0041966 | Insulation,wrapper |
|
- | |||||
| 14 | Y0063351 | Capillary Hole Cover |
|
- | |||||
| 16 | 58788CG | Oven Shell (el. W/lt) |
|
- | |||||
| 17 | Y0307380 | Cover, Chip |
|
- | |||||
| 18 | Y0067053 | Clip, Thermo Capillary |
|
- | |||||
| 19 | Y0091587 | Cable, Clip Esm |
|
- | |||||
| 20 | 4396923 | Pan, Broiler (cg) (Replaces: 314175CG) |
|
Immediately | $ 52.04 | ||||
| 21 | 4396923 | Grid, Broiler (cg) (Replaces: 304451E) |
|
Immediately | $ 52.04 | ||||
| 22 | WP314763J | Rack,oven (Replaces: Y067810K) |
|
$ 70.11 |
