SELECT A DIAGRAM

01 - Backguard Assy


02 - Cabinet Assy


03 - Electrical Components


04 - Main Top And Oven Assy


05 - Oven Door Assy


06 - Storage Drawer Assy

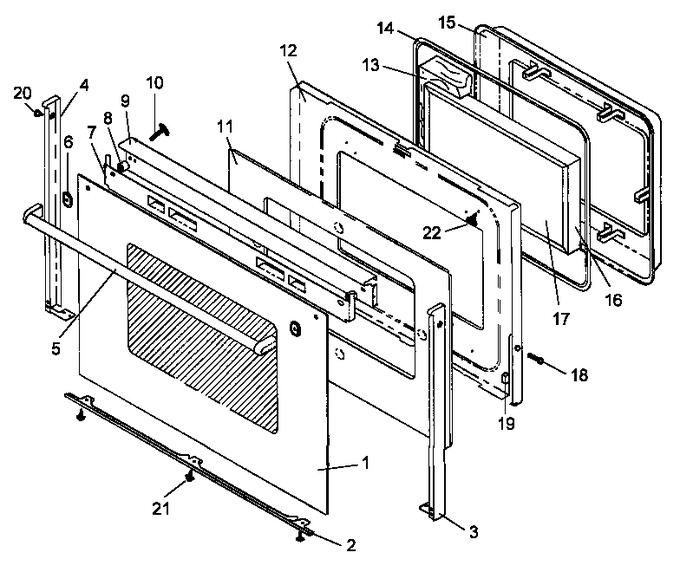

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309462B		Glass, Outer Door (blk)		Appelez-nous	-
2	309460B		Support, Glass (blk)		Appelez-nous	-
3	309457B		End Cap, Rt (blk)		Appelez-nous	-
4	309458B		End Cap, Lt (blk)		Appelez-nous	-
5	309624B		Handle, Oven Door (blk)		Appelez-nous	-
6	307892B		Spacer, Handle (blk)		Appelez-nous	-
7	309642B		Assy, Glass Heat Shield (blk)		Appelez-nous	-
8	309461B		Bushing, Handle (blk)		Appelez-nous	-
9	309456B		Trim, Upper Door		Appelez-nous	-
10	Y0309973		Screw, No.10-24x11/4 (trs Ph Hd)		Appelez-nous	-
12	309070CG		Liner, Oven Door (elec)		Appelez-nous	-
13	Y0041966		Insulation,wrapper		Appelez-nous	-
14	Y0300432		Gasket, Oven Dr 82``		Appelez-nous	-
15	58875CG		Oven Door Pad W/o Window		Appelez-nous	-
18	Y0302648		Rivet, Pop		Appelez-nous	-
19	Y0309627		Bumper, Rubber		Appelez-nous	-
20	0302844		Screw No.8 18 X 1/2 Black		Appelez-nous	-
20	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
21	Y0303777		Screw No.8-18 X .375 (bl)		Appelez-nous	-
22	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
NI	0042014		Cork Bumper		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
