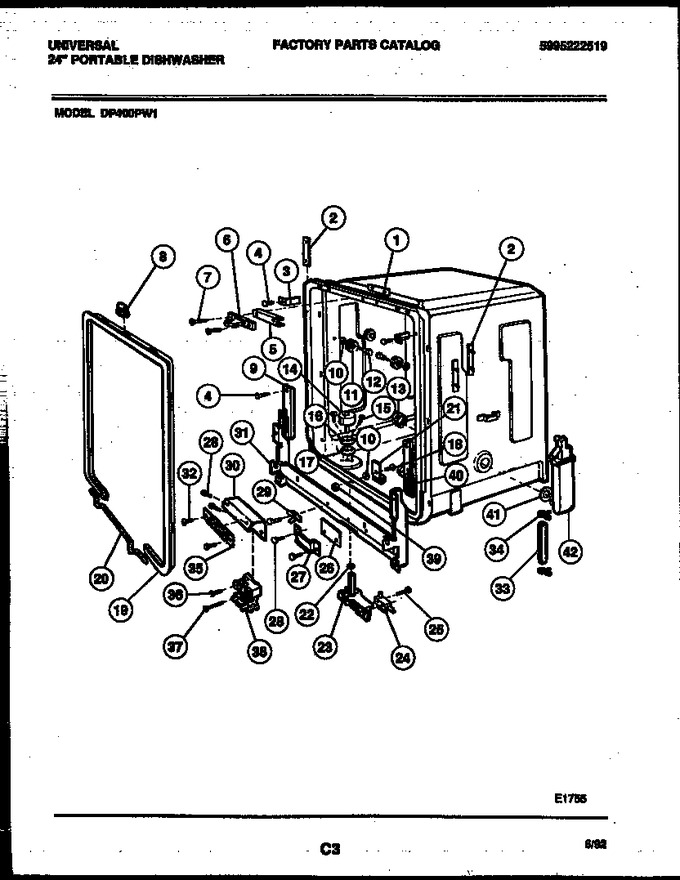

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300808868 | Plate - Tapping |
|
- | |||||
| 2 | 5300807038 | Plate-tapping (6) |
|
$ 4.94 | |||||
| 3 | 5300807454 | Pad-tub (2) |
|
- | |||||
| 4 | 5300806539 | Screw |
|
- | |||||
| 5 | 5300809214 | Shim - Strike |
|
- | |||||
| 6 | 5300807015 | Strike - Door |
|
- | |||||
| 7 | 131302901 | Screw (2) (Replaces: 5300806890) |
|
$ 4.96 | |||||
| 8 | 5300805763 | Tub Gasket Clip Kit (includes 21) |
|
- | |||||
| 9 | 5300807470 | Arm Guide L H |
|
- | |||||
| 10 | 5300809044 | Washer |
|
- | |||||
| 11 | 5304507405 | Roller-tub (Replaces: 154080001) |
|
Immediately | $ 25.79 | ||||
| 12 | 5300808564 | Screw & Washer Kit (includes 10) |
|
$ 34.02 | |||||
| 13 | 5300805669 | Nut |
|
- | |||||
| 14 | 5300809861 | Float |
|
- | |||||
| 15 | 5300809864 | Screw |
|
- | |||||
| 16 | 5300808064 | Plate - Float |
|
- | |||||
| 17 | 5300808063 | Gasket - Float |
|
$ 6.14 | |||||
| 18 | 5300803319 | Screw |
|
- | |||||
| 19 | 5300809035 | Gasket & Wire (includes 8 & 20) |
|
- | |||||
| 20 | 5300809320 | Wire - Gasket |
|
- | |||||
| 21 | 5300808115 | Clip |
|
- | |||||
| 22 | 5300807759 | O - Ring |
|
$ 4.88 | |||||
| 23 | 5300809859 | Float Switch Kit (includes 14, 16, 17, 22, 24 & 25) |
|
- | |||||
| 24 | 5300809863 | Switch - Float |
|
$ 65.73 | |||||
| 25 | 5300809864 | Screw |
|
- | |||||
| 26 | 5300809144 | Shield - Wire |
|
- | |||||
| 27 | 5300806723 | Clamp - Wire |
|
- | |||||
| 28 | 154419403 | Screw (5) (Replaces: 5300808658) |
|
$ 13.10 | |||||
| 29 | 5300807213 | Terminal Ground |
|
- | |||||
| 30 | 5300807849 | Bracket |
|
- | |||||
| 31 | 5300808739 | Hinge |
|
- | |||||
| 32 | 5300807501 | Screw (2) |
|
- | |||||
| 33 | 5300807891 | Tubing-water-includes 34 |
|
- | |||||
| 34 | 5300807813 | Clamp (2) |
|
- | |||||
| 35 | 5300809830 | Terminal Block |
|
- | |||||
| 36 | 3018140 | Screw |
|
- | |||||
| 37 | 3018141 | Screw |
|
- | |||||
| 38 | 5300805255 | Relay - Motor |
|
- | |||||
| 39 | 5300803346 | Nut |
|
- | |||||
| 40 | 5300807471 | Arm Guide R H |
|
- | |||||
| 41 | 5300803573 | Gasket-inlet |
|
- | |||||
| 42 | 5300806470 | Inlet Water |
|
- |
