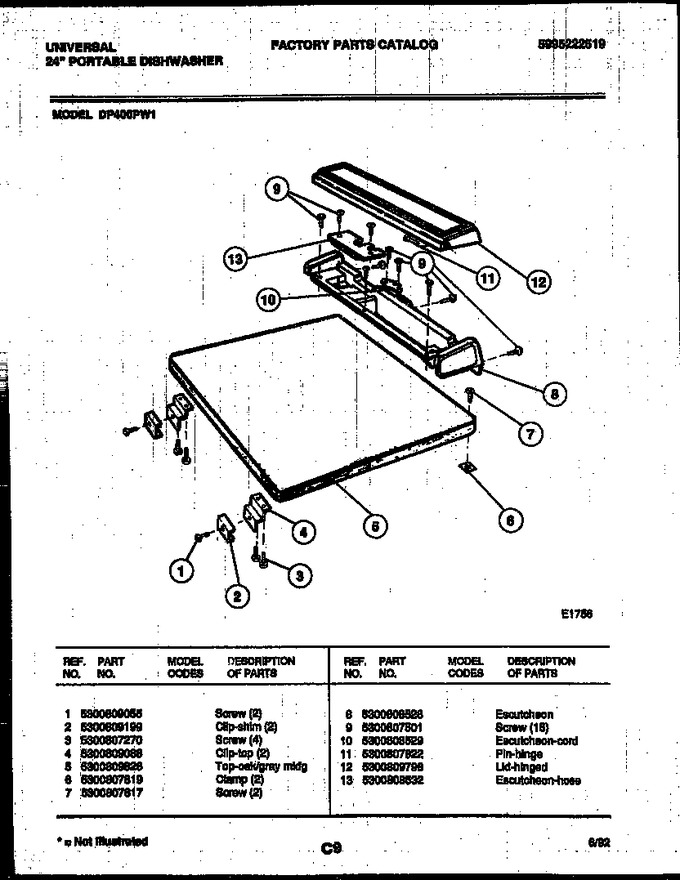

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300809055 | Screw (2) |
|
$ 1.21 | |||||
| 2 | 5300809199 | Clip-shim (2) |
|
- | |||||
| 3 | 5300807270 | Screw (4) |
|
$ 6.72 | |||||
| 4 | 5300809088 | Clip-top (2) |
|
- | |||||
| 5 | 5300809826 | Top-oak/gray Mldg |
|
- | |||||
| 6 | 5300807819 | Clamp (2) |
|
- | |||||
| 7 | 5300807817 | Screw (2) |
|
- | |||||
| 8 | 5300808528 | Escutcheon |
|
- | |||||
| 9 | 5300807501 | Screw (15) |
|
- | |||||
| 10 | 5300808529 | Escutcheon - Cord |
|
- | |||||
| 11 | 5300807822 | Pin-hinge |
|
- | |||||
| 12 | 5300809798 | Lid-hinged |
|
- | |||||
| 13 | 5300808532 | Escutcheon - Hose |
|
- |
