View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Console And Control Parts
03 - Cam
04 - Door Parts
05 - Tub And Frame Parts
06 - Motor Pump Parts
07 - Cabinet Parts
08 - Top Parts
09 - Racks And Trays
SELECT A DIAGRAM
New Model Search:

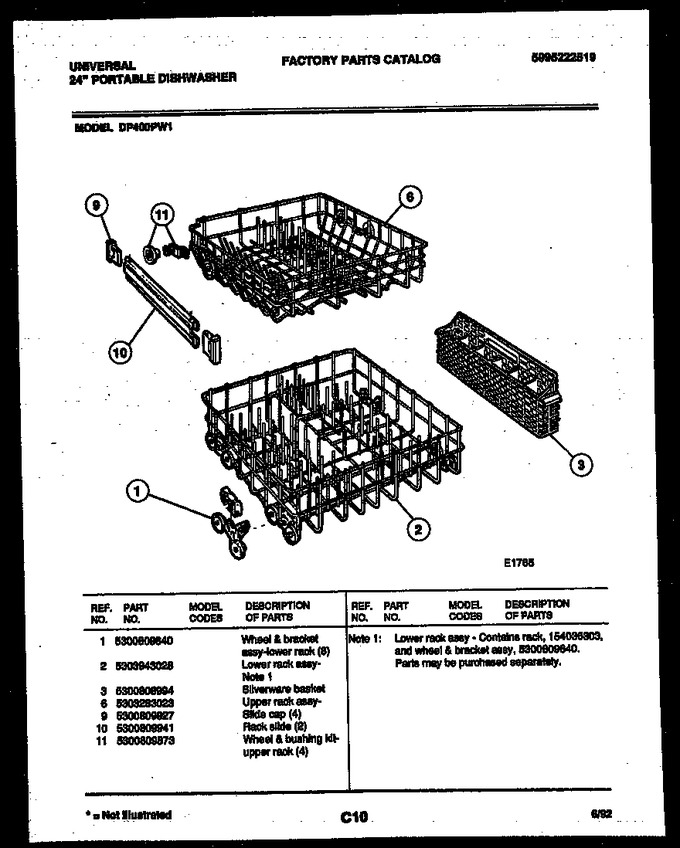

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304532229 | Wheel & Bracket Assy - Lower Rack (8) (Replaces: 5300809640) |
|
Immediately | $ 12.75 | ||||
| 2 | 5303943028 | Lower Rack Assy-(lower Rack Assy - Contains Rack, 154036 |
|
- | |||||
| 3 | 5304509753 | Silverware Basket (Replaces: 5300808994) |
|
Immediately | $ 36.87 | ||||
| 6 | 5303283023 | Upper Rack Assy- |
|
- | |||||
| 9 | 5300809927 | Slide Cap (4) |
|
Immediately | $ 3.69 | ||||
| 10 | 5300809941 | Rack Slide (2) |
|
- | |||||
| 11 | 5300809873 | Wheel & Bushing Kit-upper Rack (4) |
|
$ 32.80 |
